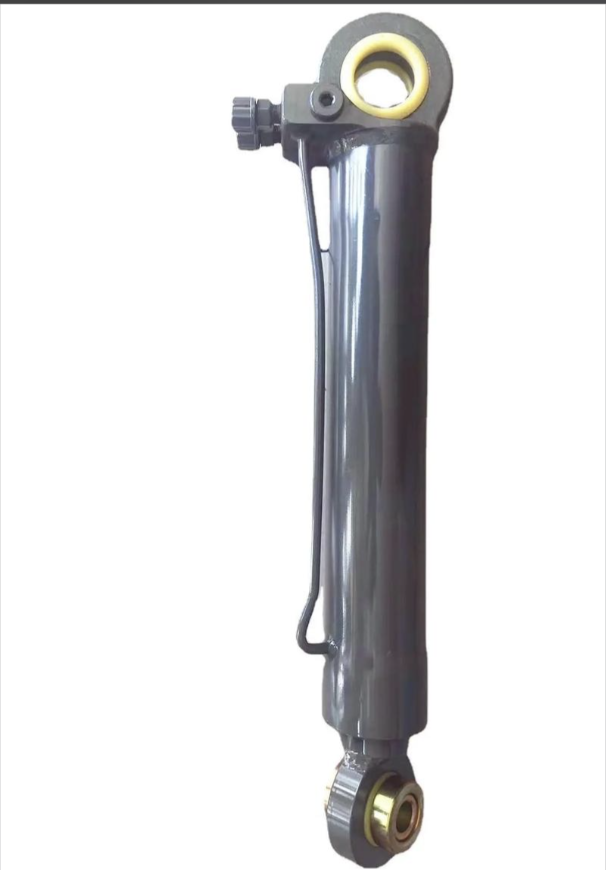

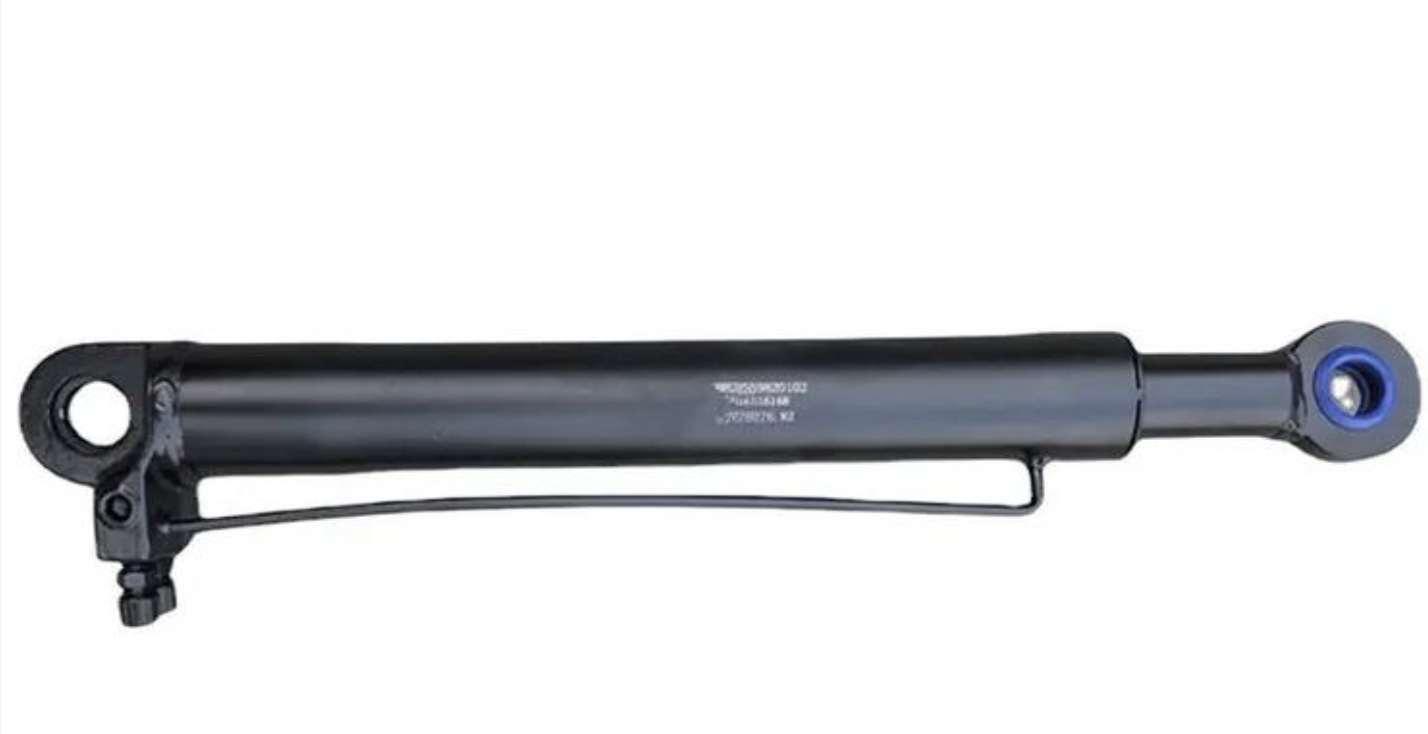

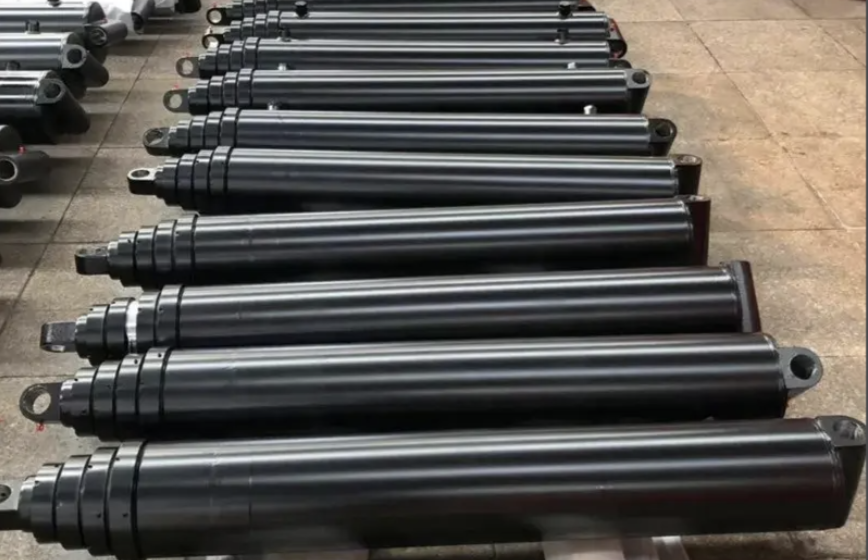

Mining Dump Truck Lifting Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Mining Dump Truck Lifting Cylinder | Pressure Level | 25-31.5 MPa |
|---|---|---|---|
| Piston Rod Material | 42CrMo Segmented Piston Rod | Cylinder Barrel Material | 27SiMn Segmented Barrel |
| Structural Type | Multi-stage Telescopic Type | Action Mode | Single / Double Acting |
| Structural Features | Small Retracted Length, Ultra-long Extending Stroke | Application Scenario | Cargo Box Lifting And Unloading Of Mining Dump Truck |
| Applicable Equipment | Underground & Open-pit Mining Dump Truck | Core Advantages | Small Installation Space, Large Stroke, Stable Heavy-load Lifting |
Product Description
A standard multi-stage telescopic cylinder for light-duty mining dump trucks, operating at 25MPa. It features small retracted length and basic ultra-long extending stroke for cargo box lifting and unloading in open-pit mines. Constructed with a 42CrMo segmented piston rod and 27SiMn segmented barrel, it adapts to standard mining conditions, suitable for small-scale mining transportation and low-capacity dump trucks.
