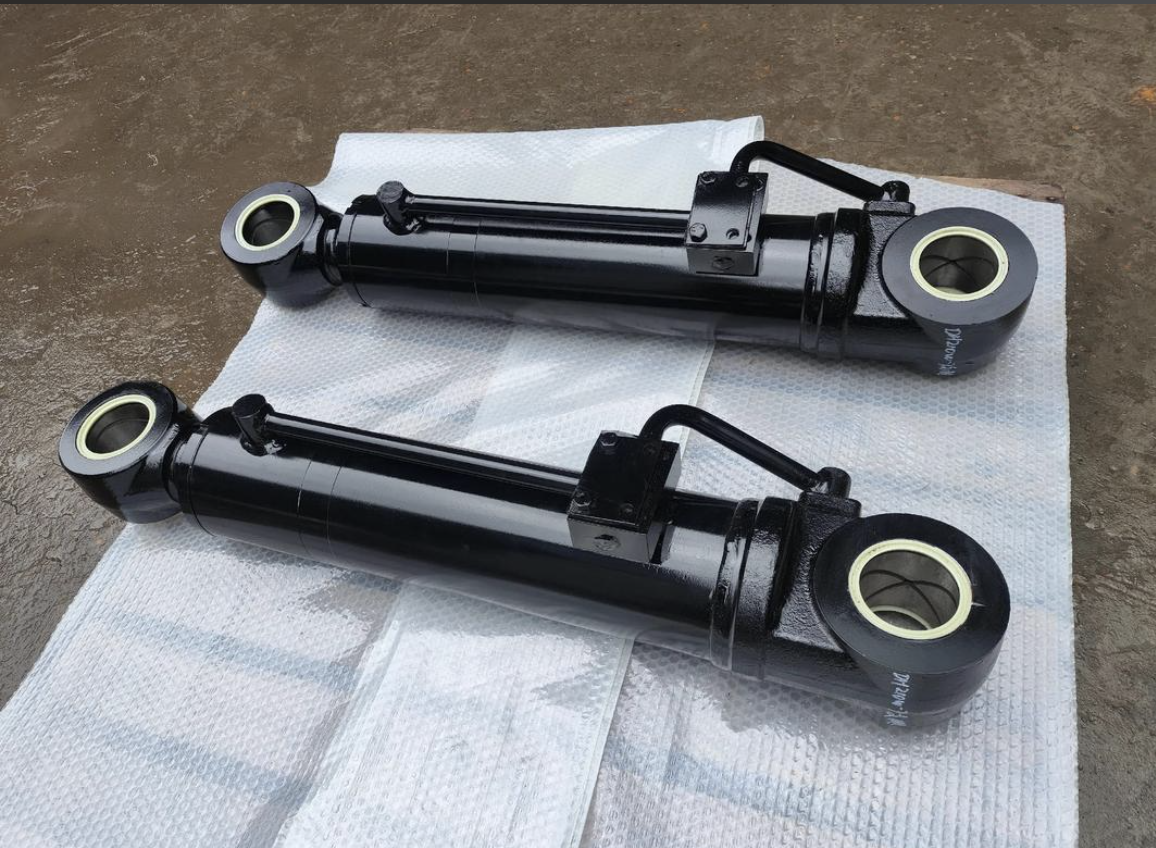

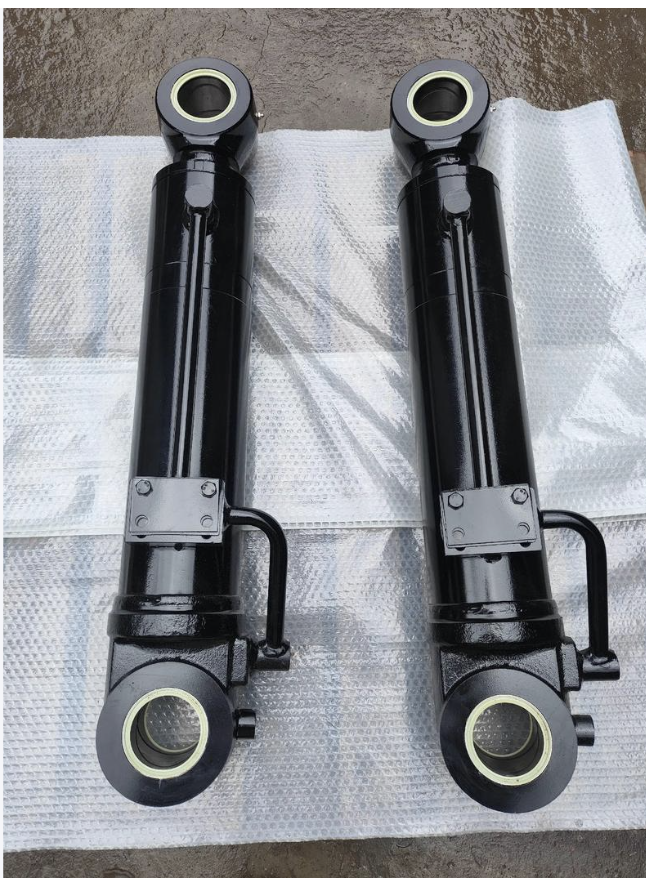

Multi-stage Telescopic Piston Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Multi-stage Telescopic Piston Cylinder | Pressure Level | Engineering: 25 MPa Heavy Mining: 31.5 MPa Ultra-high Pressure: 35 MPa |
|---|---|---|---|
| Common Barrel Material | 27SiMn High-strength Alloy Seamless Steel Tube | Common Rod Material | 40CrMo Quenched & Tempered + Hard Chrome Plating |
| Seal Structure | Glyd Ring, Step Seal + Buffer Seal | Mounting Type | Trunnion, Double Ear Hinge |
| Action Type | Single-action / Double-action Optional | Applicable Vehicle Models | Heavy-duty Engineering Vehicle, Large-tonnage Mining Dumper |
| Main Application Scenarios | Heavy-load Lifting, Side-tipping, Severe Working Conditions | Core Structural Features | Multi-stage Piston Structure, Uniform Force, Hydraulic Forced Return |
| Cylinder Type Core Advantages | Strong Eccentric Load Resistance, Dual-action Controllable, Stable Under Heavy Load, Good Low-temperature Adaptability |
Product Description

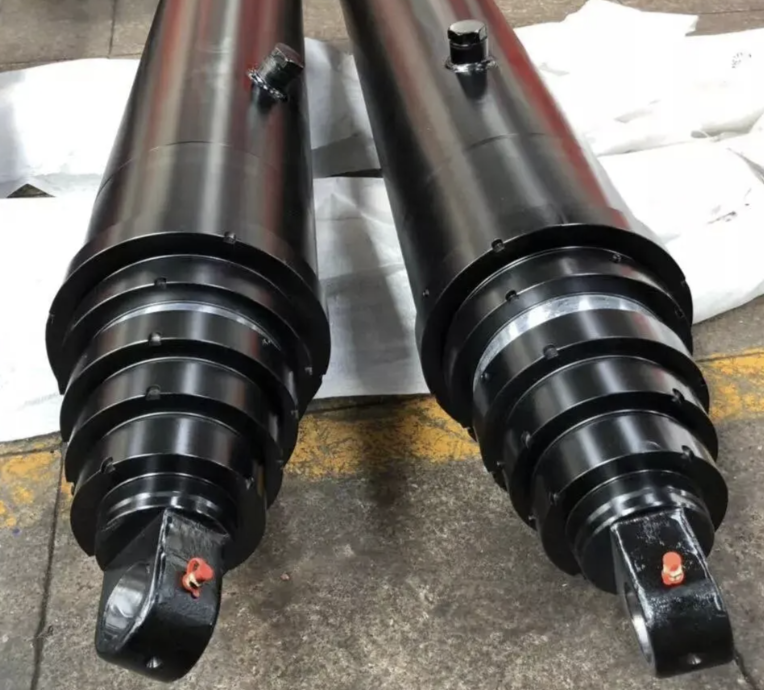

A 3-stage single-acting telescopic piston cylinder for light-duty engineering vehicles, operating at 25MPa. It features multi-stage piston structure and uniform force, designed for basic heavy-load lifting in standard conditions. Constructed with a 27SiMn barrel and 40CrMo chrome-plated piston rod, it uses trunnion mounting for stable operation. Ideal for general engineering dumpers and light construction applications.
