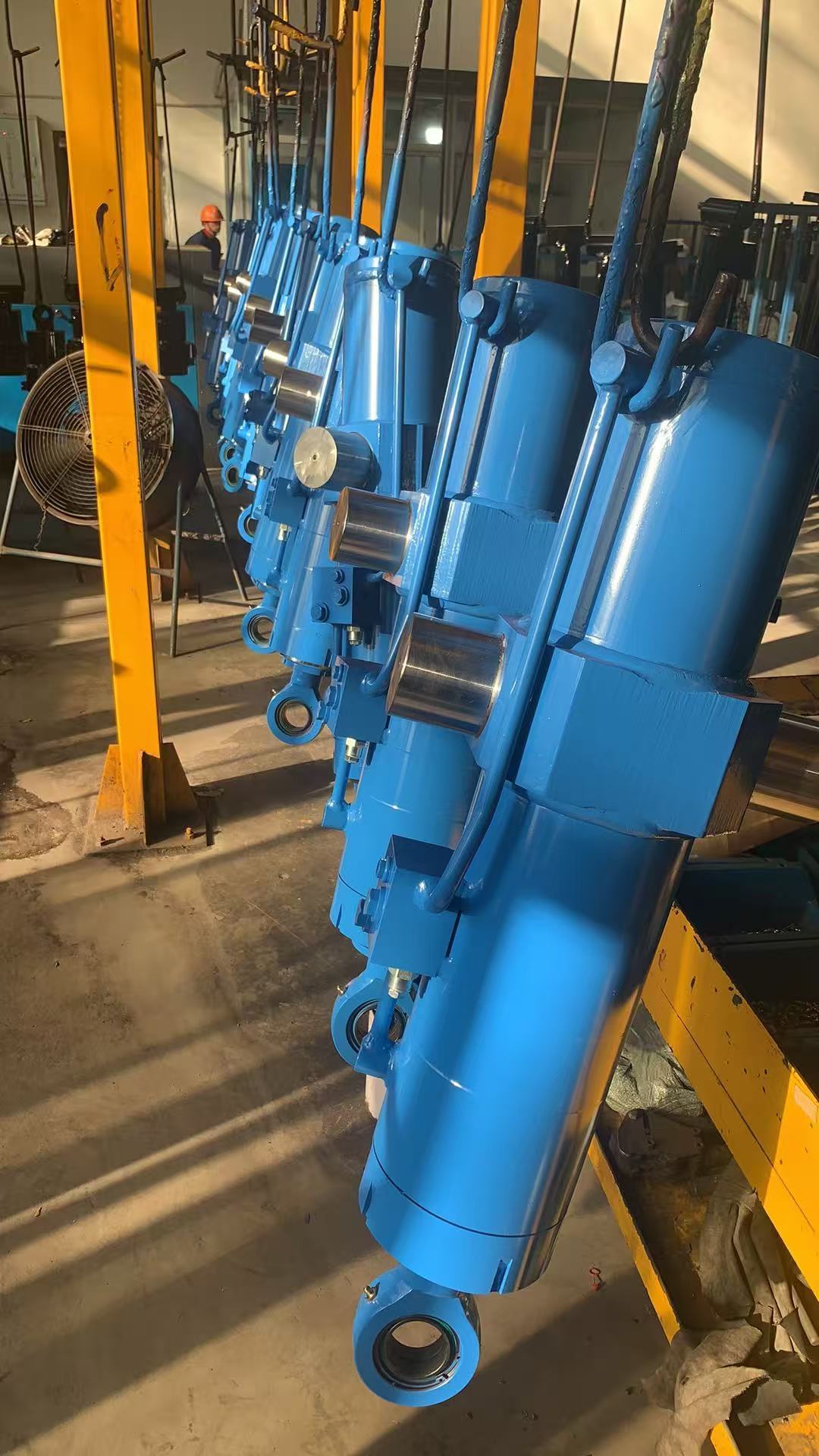

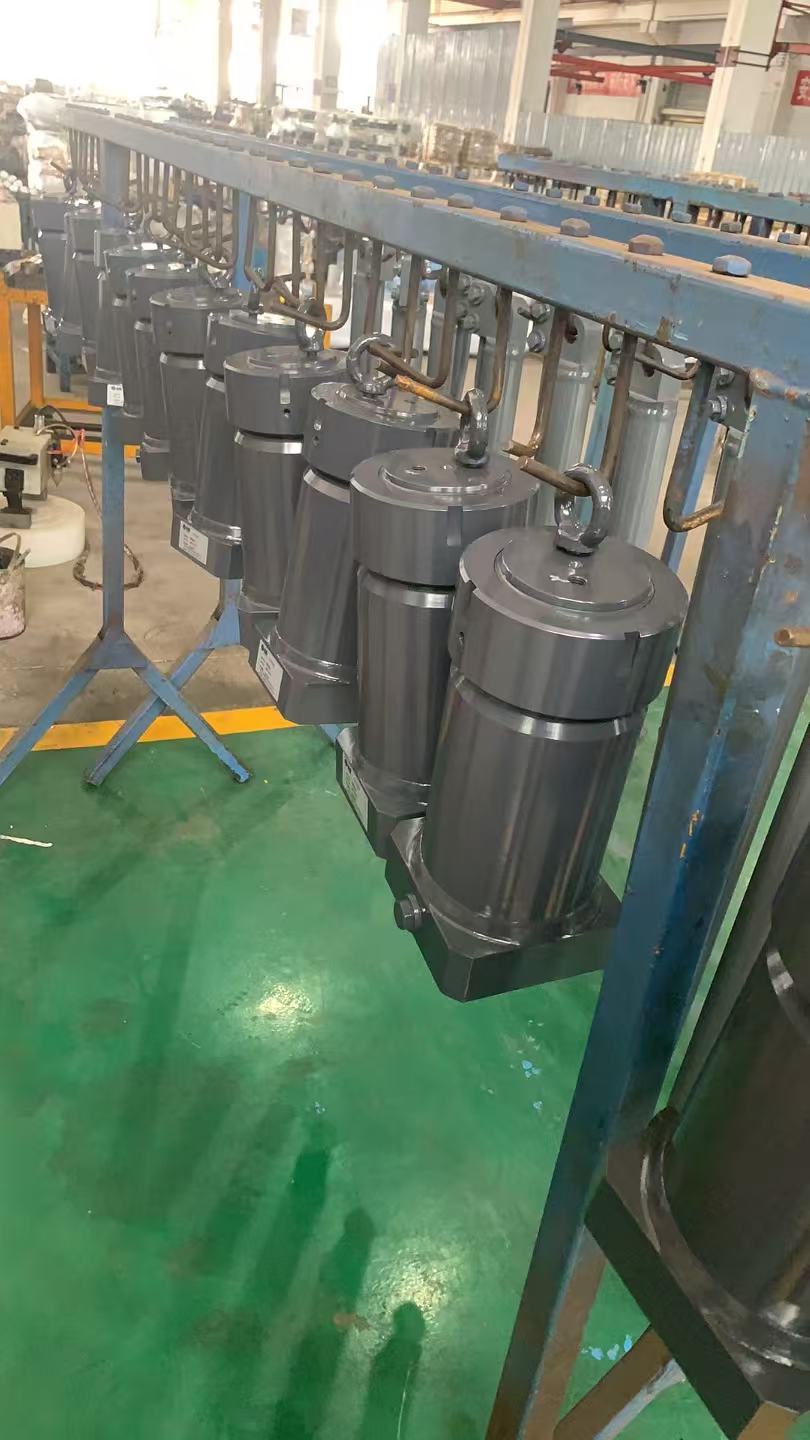

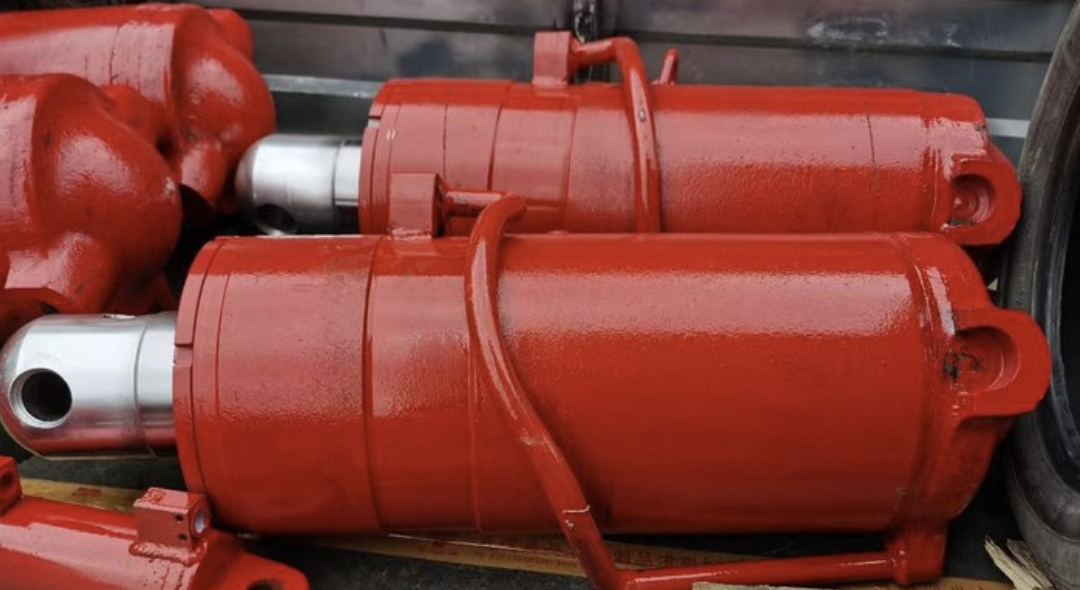

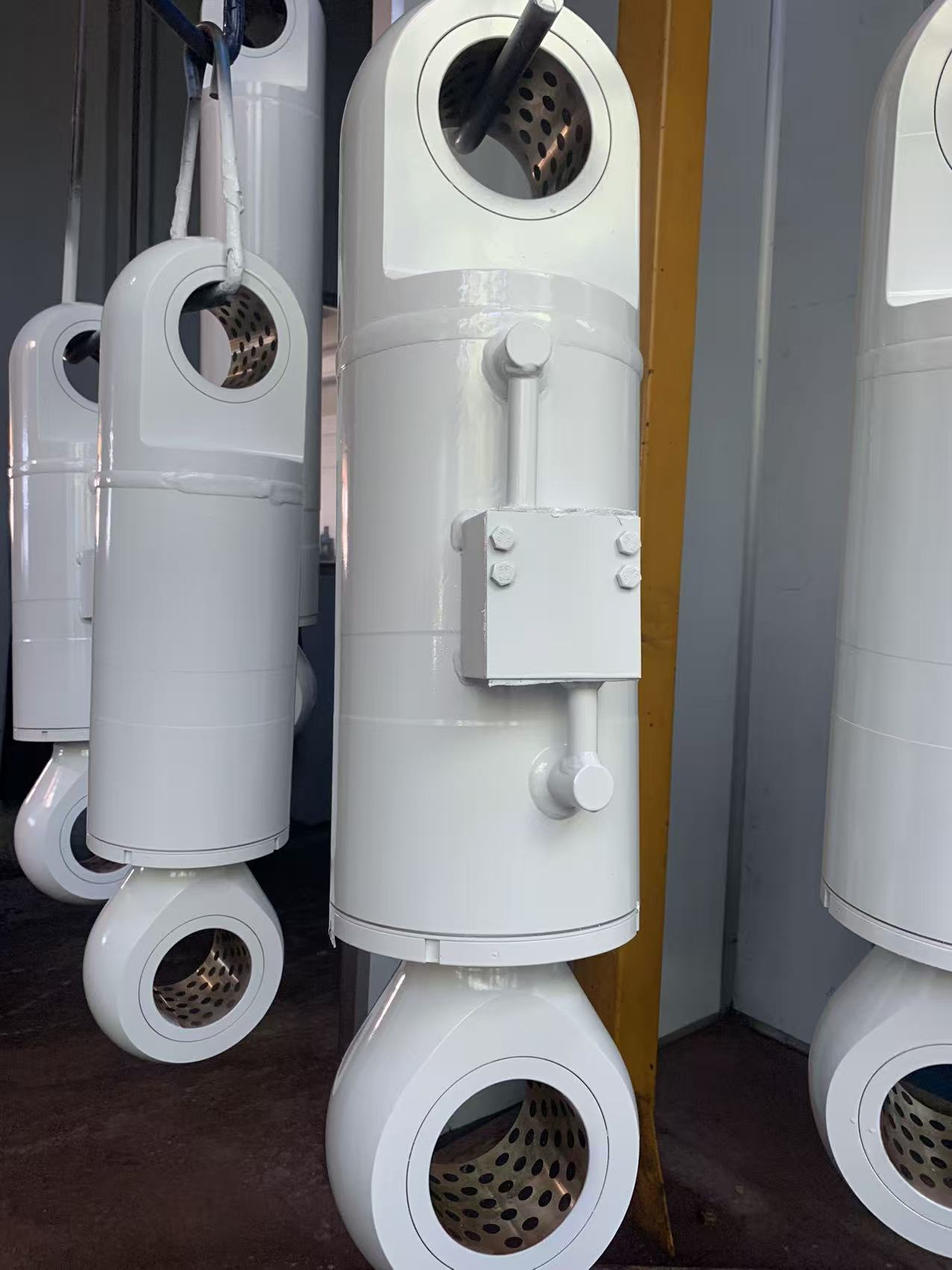

Support Side Shield Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Support Side Shield Cylinder | Pressure Level | 20-25 MPa |
|---|---|---|---|
| Piston Rod Material | 40Cr、42CrMo | Cylinder Barrel Material | 27SiMn |
| Structural Type | Mini Single-rod Piston Type | Action Mode | Double Acting |
| Structural Features | Small Size, Short Stroke, Compact Structure Side Shield Deviation Adjustment, Gangue Blocking | Application Scenario | Side Shield Deviation Adjustment, Gangue Blocking |
| Applicable Equipment | Side Shield Mechanism Of Hydraulic Support | Core Advantages | Small Occupation, High Fine Adjustment Accuracy, Sensitive Response |
Product Description
A mini single-rod double-acting cylinder for light-duty hydraulic support side shield mechanisms, operating at 20MPa. It features
small size, short stroke, and compact structure, ideal for basic side shield deviation adjustment and gangue blocking. Constructed
with a 40Cr piston rod and 27SiMn barrel, it adapts to standard underground conditions, suitable for low-to-medium complexity mining supports.
