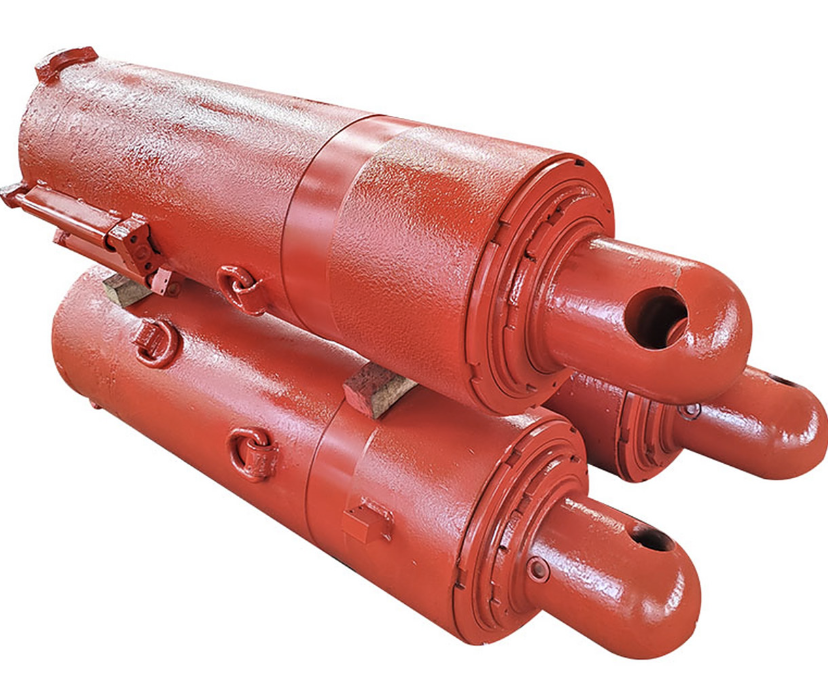

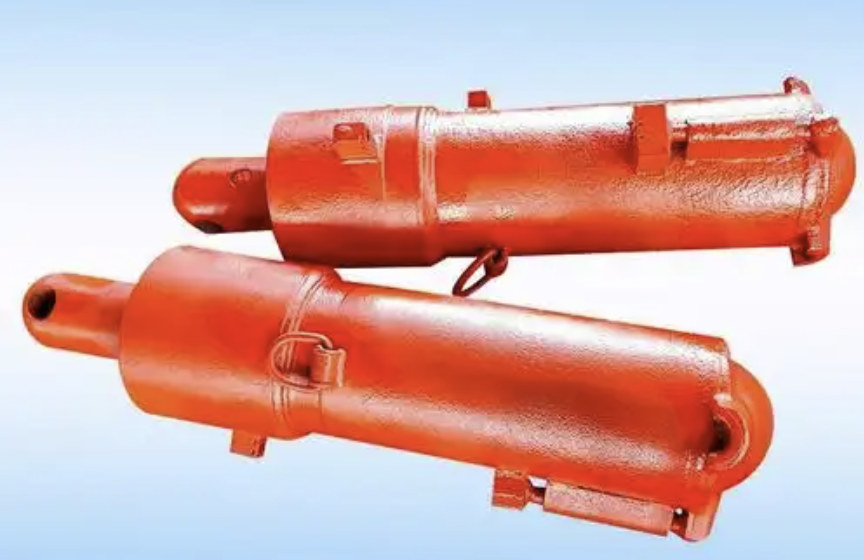

Hydraulic Support Column Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Hydraulic Support Column Cylinder | Pressure Level | 31.5-40 MPa |
|---|---|---|---|
| Piston Rod Material | 42CrMo, 40Cr Quenched & Tempered, Hard Chrome Plated | Cylinder Barrel Material | 27SiMn、30CrMo |
| Structural Type | Plunger / Single-rod Piston Type | Action Mode | Single / Double Acting |
| Structural Features | Large Bore, High Rigidity, Anti-eccentric Load, Multi-stage Sealing | Application Scenario | Main Roof Support At Fully Mechanized Mining Face |
| Applicable Equipment | Shield / Chock-shield Hydraulic Support | Core Advantages | Large Load Capacity, Impact Resistance, Dust & Corrosion Resistance, Long Service Life |
Product Description
A standard plunger-type cylinder for light-duty shield hydraulic supports, operating at 31.5MPa. It features large bore, high rigidity, and basic multi-stage sealing, ideal for main roof support in low-to-medium complexity mining faces. Constructed with a 40Cr quenched & tempered hard chrome-plated piston rod and 27SiMn barrel, it adapts to standard underground conditions.
