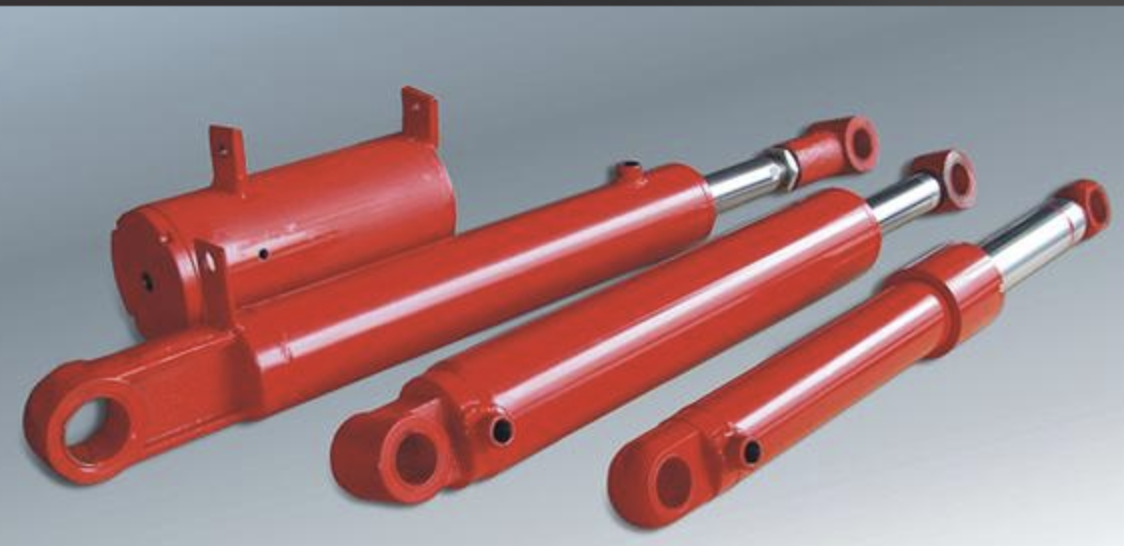

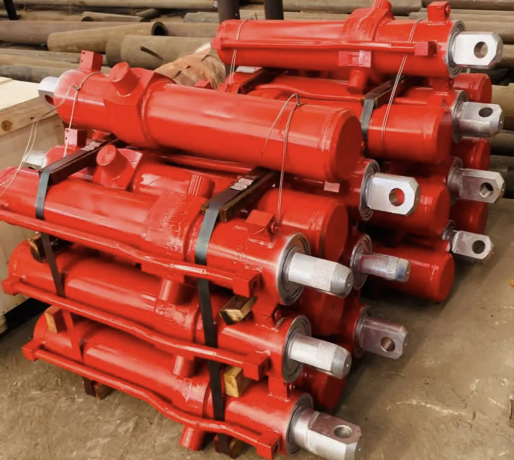

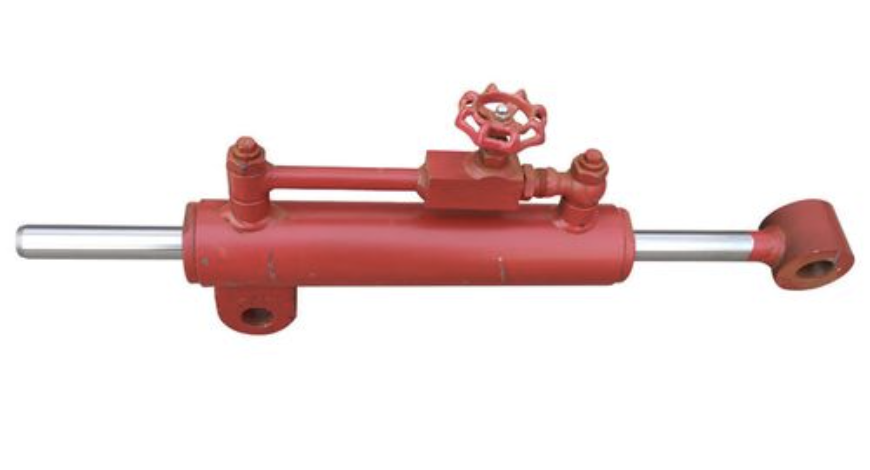

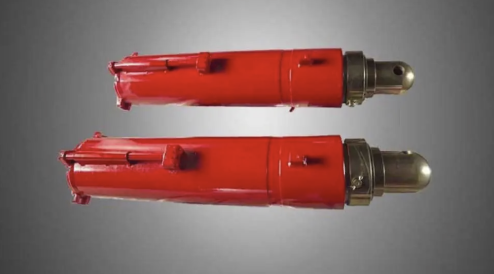

Support Push-Pull Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Support Push-Pull Cylinder | Pressure Level | 25-31.5 MPa |
|---|---|---|---|
| Piston Rod Material | 42CrMo | Cylinder Barrel Material | 27SiMn |
| Structural Type | Single-rod Double-acting Piston Type | Action Mode | Double Acting |
| Structural Features | Medium Bore, Stable Operation, With Hinged Lugs | Application Scenario | Push Support And Scraper Conveyor |
| Applicable Equipment | All Types Of Fully Mechanized Mining Hydraulic Supports | Core Advantages | Balanced Bidirectional Thrust, Good Synchronization, Versatile Installation |
Product Description
A standard single-rod double-acting piston cylinder for light-duty hydraulic supports, operating at 25MPa. It features medium bore and stable operation with hinged lugs, ideal for basic support and scraper conveyor pushing. Constructed with a 42CrMo piston rod and 27SiMn barrel, it adapts to standard mining conditions, suitable for low-to-medium complexity mechanized supports.
