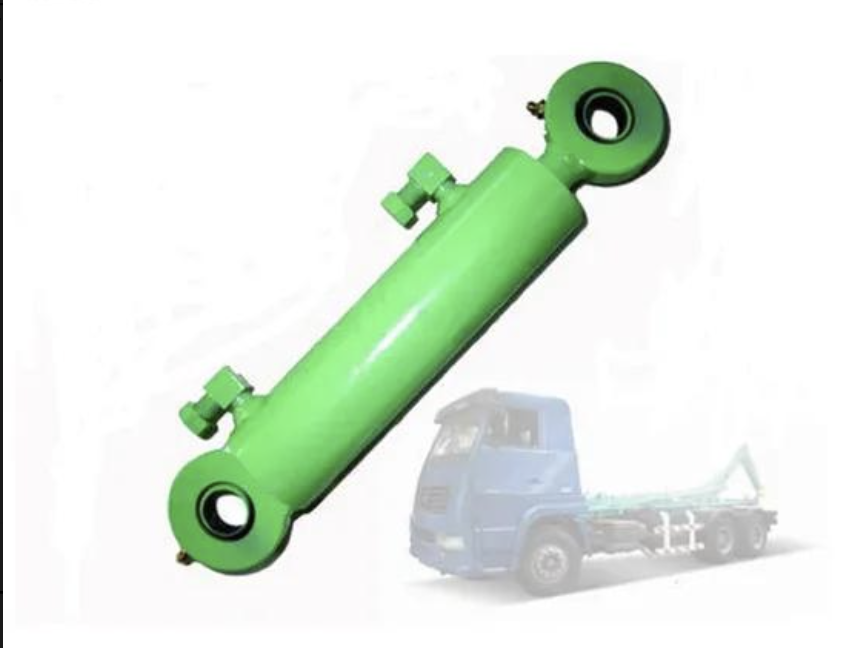

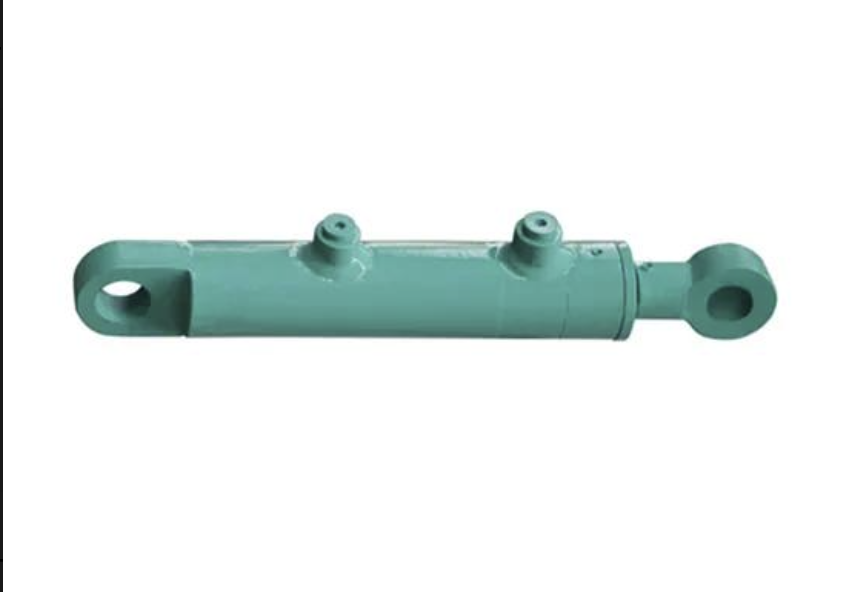

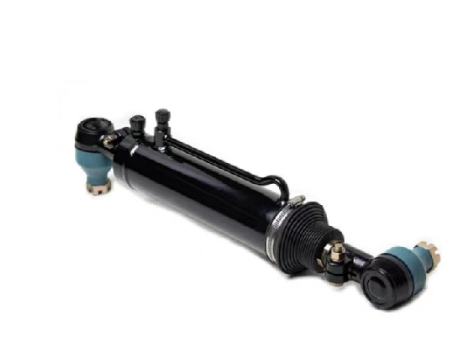

Single-rod Double-acting Piston Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Single-rod Double-acting Piston Cylinder | Pressure Level | 16–25 MPa |
|---|---|---|---|
| Common Barrel Material | 27SiMn Q355B | Common Rod Material | 40Cr Quenched & Tempered + Hard Chrome Plating, 45# Chrome Plating |
| Mounting Type | Double-ear Hinge, Trunnion Type | Action Type | Double-acting Bidirectional Hydraulic Telescoping |
| Applicable Vehicle Models | Compressed Garbage Truck, Road Sweeper, Sprinkler, Guardrail Cleaning Truck | Main Application Scenarios | Push Plate, Scraper, Loader Opening/closing, Suction Nozzle Lifting, Brush Folding, Side Arm |
| Core Structural Features | Single Piston Rod, Built-in Buffer, Bidirectional Force, Controllable Movement | Core Advantages | Stable Start-stop, Push-pull Capable, Precise Positioning, Suitable For Various Linear Operations |
Product Description
A standard light-duty single-rod double-acting piston cylinder, operating at 16MPa. It features built-in buffering and controllable bidirectional force, designed for basic push plate, scraper, and side arm operations on light sanitation vehicles. Constructed with a Q355B barrel and 45# steel chrome-plated piston rod, it uses double-ear hinge mounting for compact installation. Ideal for sprinkler trucks and small road sweepers in low-demand scenarios.
