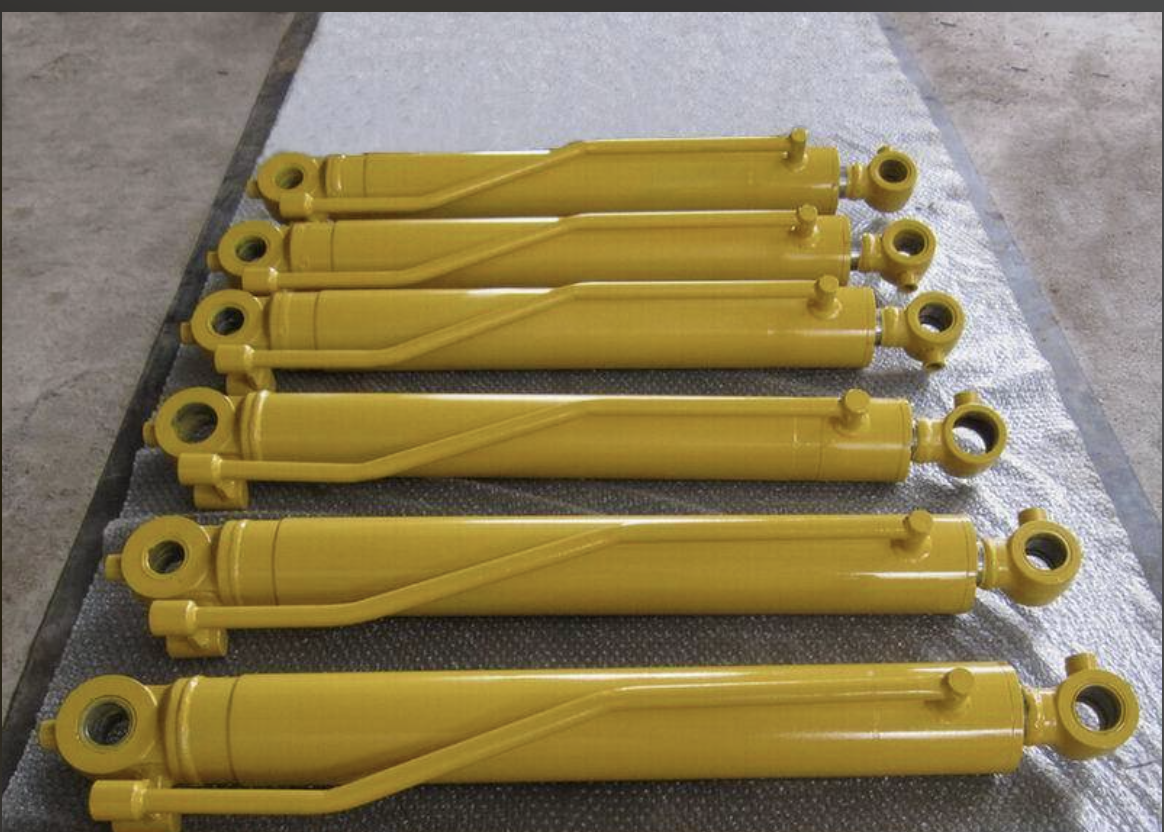

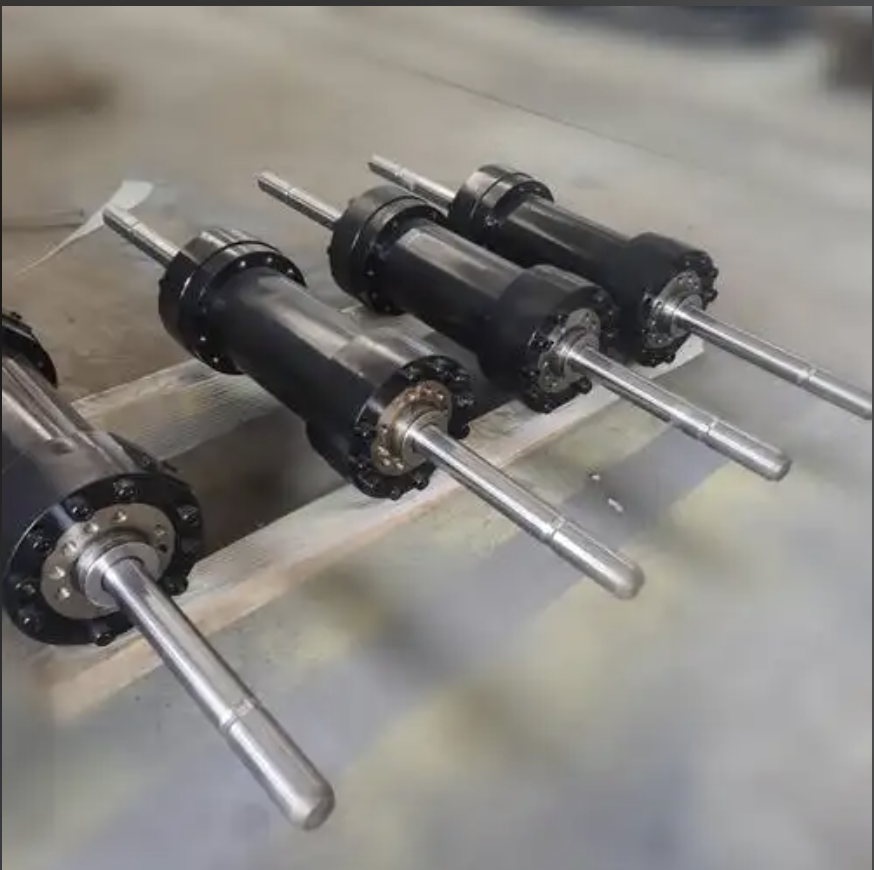

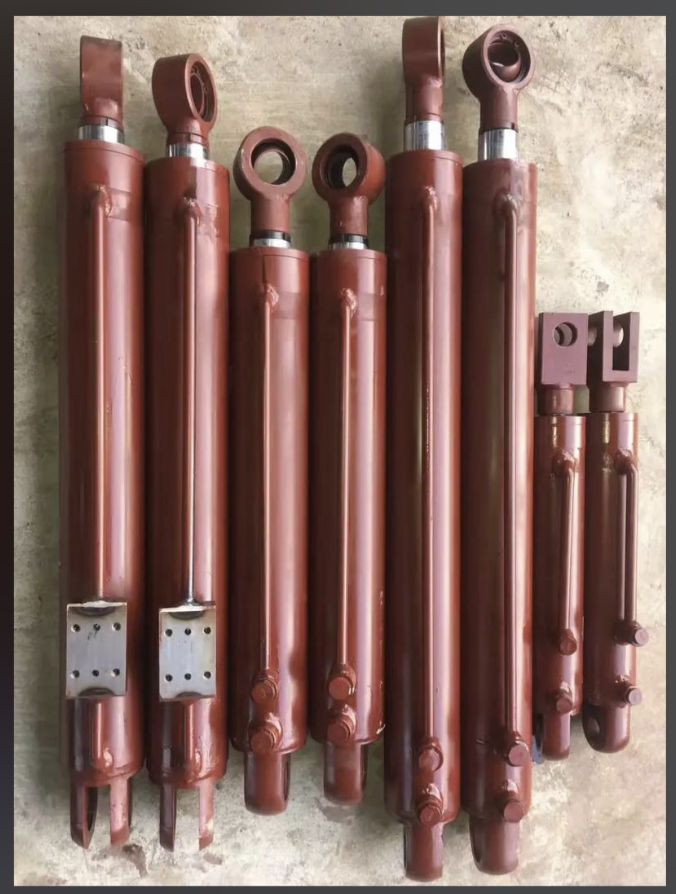

Double-rod Piston Synchronous Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Double-rod Piston Synchronous Cylinder | Pressure Level | 16–20 MPa |
|---|---|---|---|
| Common Barrel Material | 27SiMn Q355B | Common Rod Material | 40Cr Chrome Plating |
| Mounting Type | Double-ear Flange, Hinge Type | Action Type | Double-acting |
| Applicable Vehicle Models | Road Sweeper, Sanitation Symmetric Clamping Mechanism | Main Application Scenarios | Synchronous Left And Right Brush Discs, Double-opening Doors, Symmetric Clamping |
| Core Structural Features | Equal-diameter Piston Rods At Both Ends, Consistent Bidirectional Speed And Thrust | Core Advantages | Good Synchronization, Stable Operation, No Deviation |
Product Description
A basic double-rod piston synchronous cylinder designed for light-duty sanitation vehicles, operating at 16MPa. It features equal-diameter piston rods and consistent bidirectional speed/thrust, built for simple synchronous operations like brush disc adjustment. Constructed with a Q355B barrel and 40Cr chrome-plated piston rod, it uses double-ear flange mounting. Ideal for small road sweepers and light clamping mechanisms.
