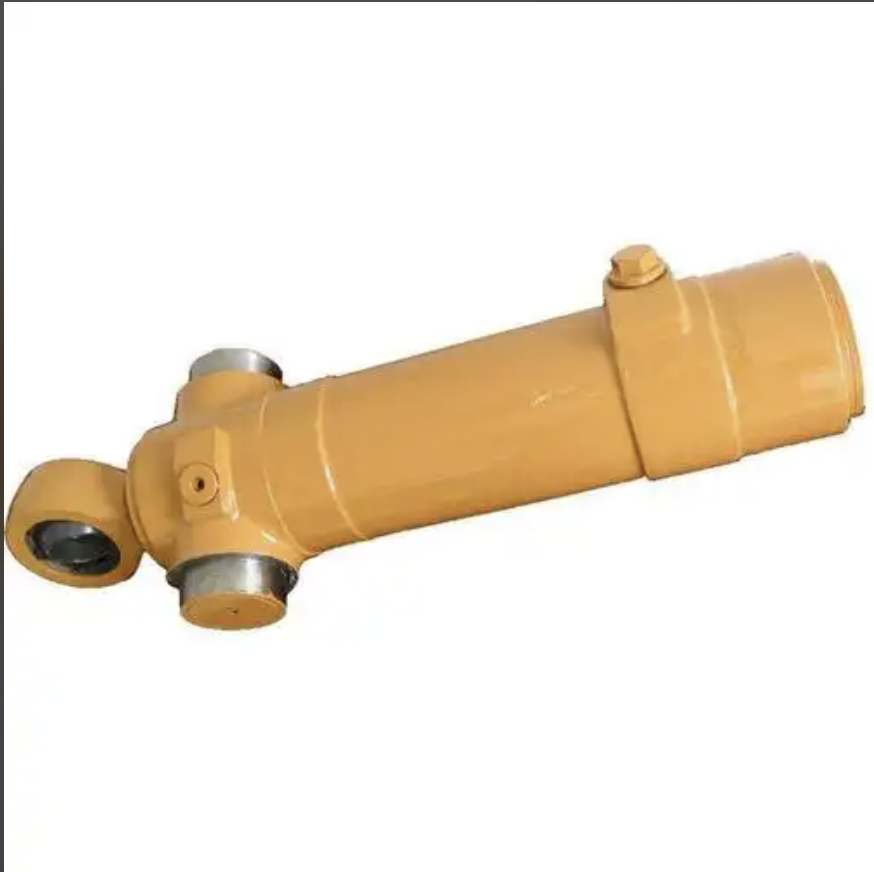

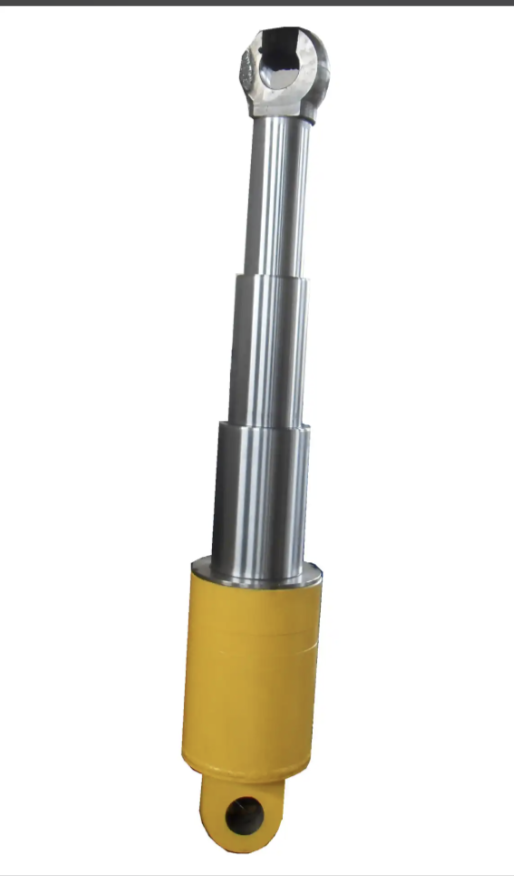

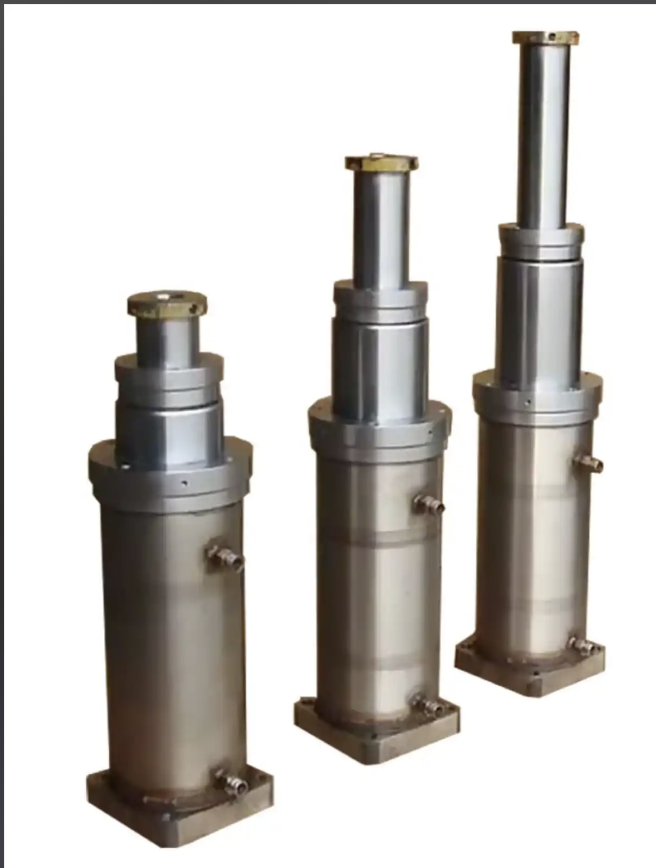

Multi-stage Telescopic Plunger Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Multi-stage Telescopic Plunger Cylinder | Pressure Level | Light: 16 MPa Medium:20-25MPa Mining:31.5MPa |
|---|---|---|---|
| Common Barrel Material | 27SiMn Q355B | Common Rod Material | 45# Steel Quenched & Tempered 40Cr Hard Chrome Plated |
| Seal Structure | Composite Wear-resistant Seal + Dust Ring | Mounting Type | Eye Bracket, Ball Joint Hinge |
| Action Type | Single-action（Gravity Return） | Applicable Vehicle Models | Dumper Truck, General Self-unloading Truck, Medium And Small Mining Truck |
| Main Application Scenarios | Main Cargo Box Lifting, Front / Middle Mounting Lifting System | Core Structural Features | Multi‑stage Sleeve Nested Structure, No Piston, Simple Structure, Built‑in Guide Sleeve |
| Core Advantages | Low Failure Rate, Dust Resistance, Large Stroke, Compact Retracted Size, High Thrust, Cost-effective |
Product Description

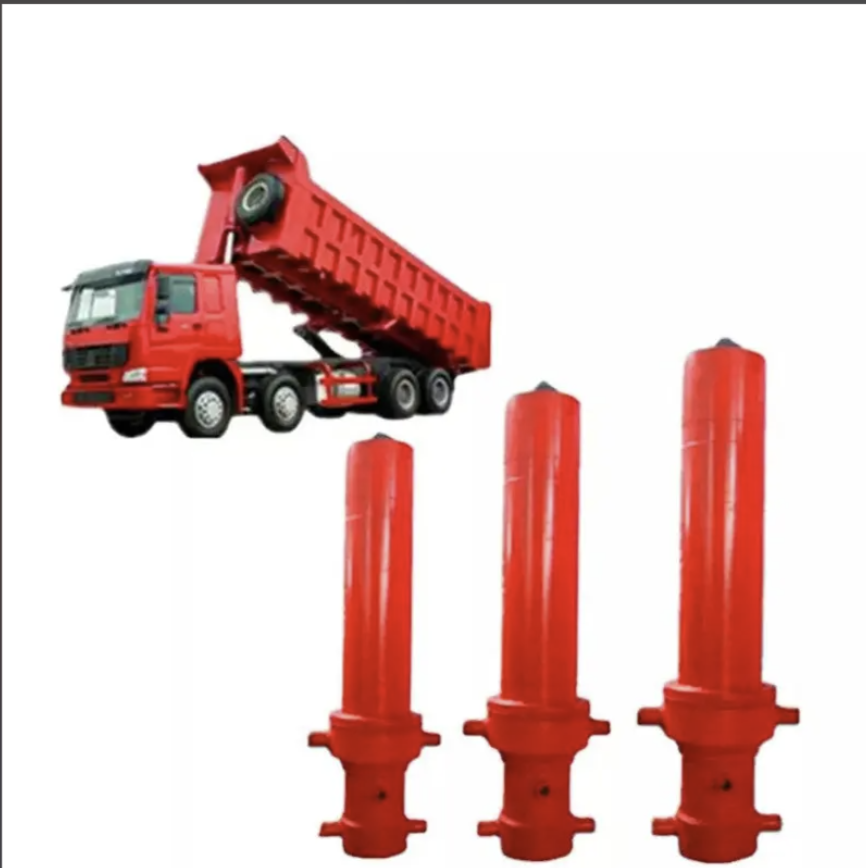

A 3-stage single-acting telescopic plunger cylinder for light-duty dump trucks, operating at 16MPa. It features multi-stage nested sleeve structure and gravity return, designed for basic cargo box lifting in standard conditions. Constructed with a Q355B barrel and 45# steel chrome-plated piston rod, it uses eye bracket mounting for compact installation. Ideal for small dump trucks and general self-unloading applications.
