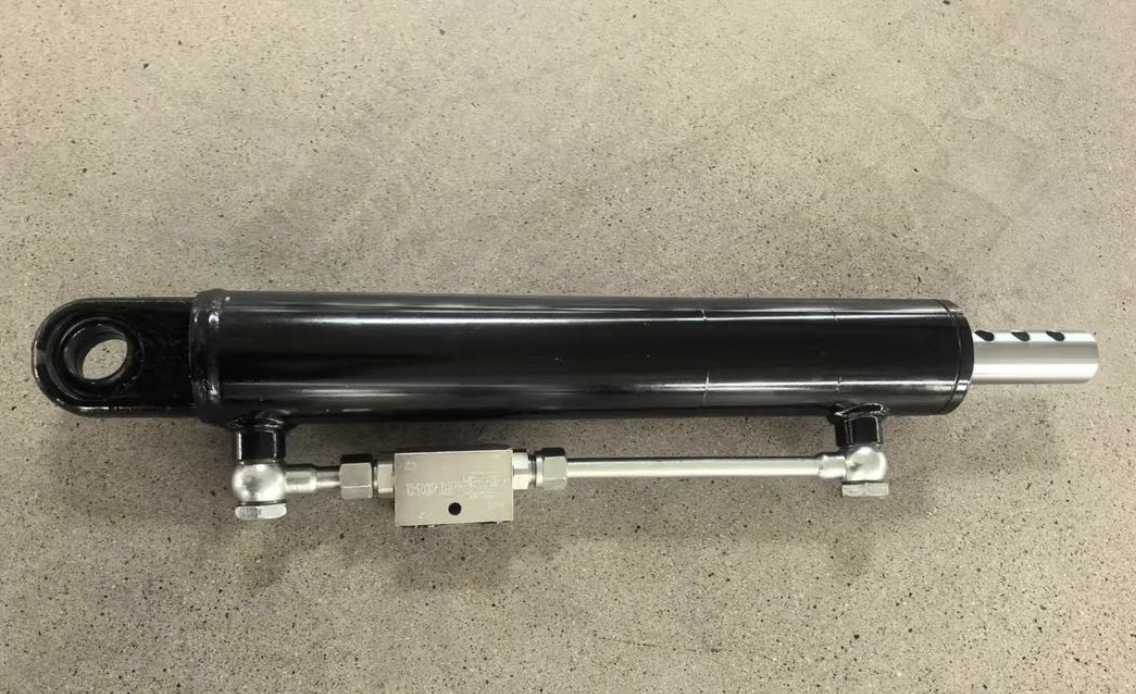

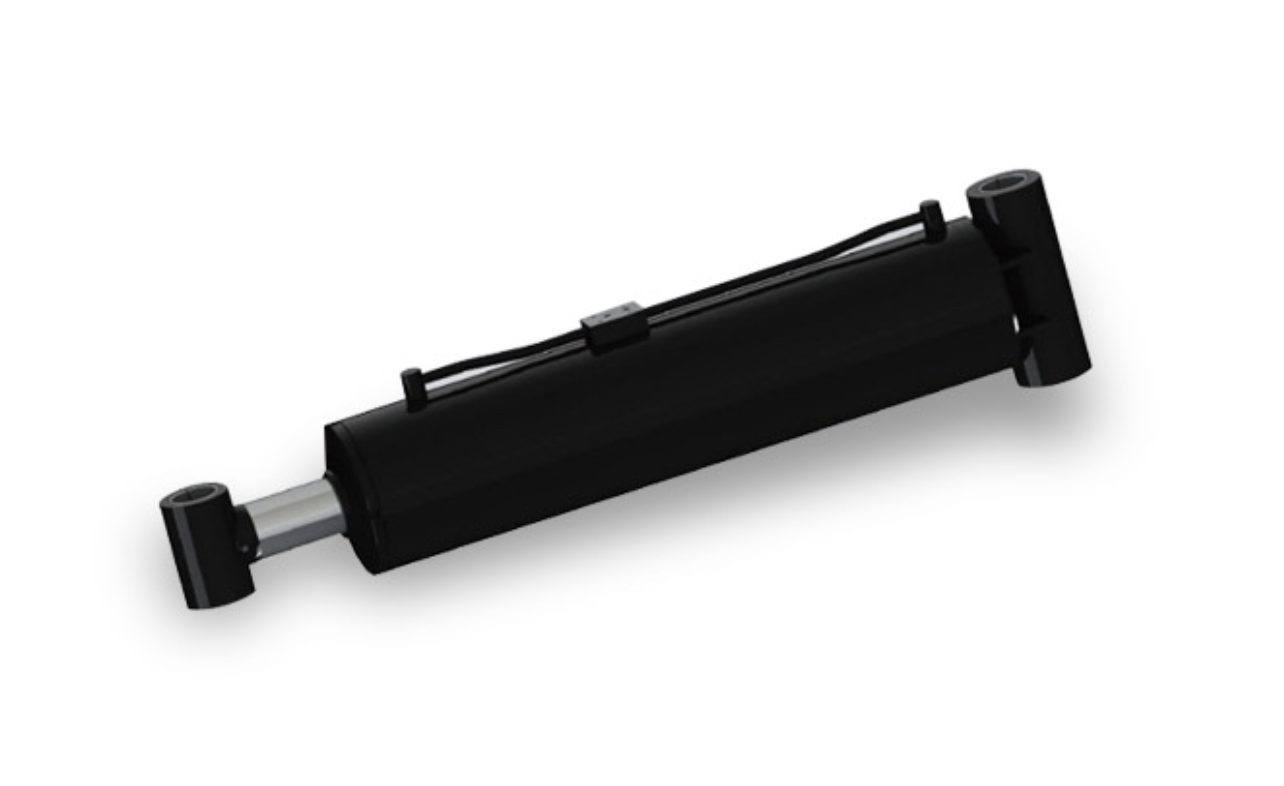

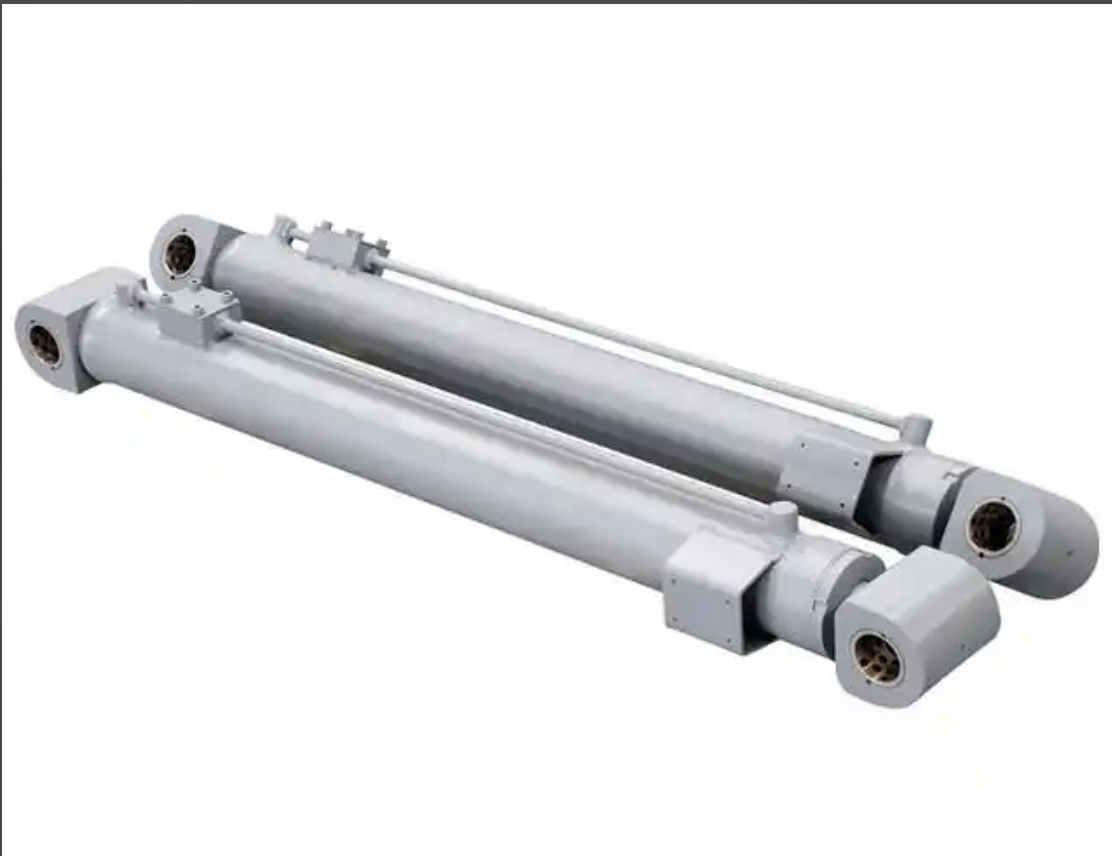

Luffing Cylinder Photo
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Luffing Cylinder Photo | Pressure Level | 28-35 MPa |
|---|---|---|---|
| Common Barrel Material | 27SiMn High-strength Thin-wall Cold Drawn Tube | Common Rod Material | 42CrMo Nickel-Chromium Composite Plating |
| Structure Type | Double-acting Piston Type | Core Features | High Thrust, Anti-eccentric Load, Integrated Cylinder Bottom Trunnion |
| Application Scenarios | Boom Luffing, Ladder Lifting | Core Advantages | Compact Structure, Low Temperature Resistance, No Creeping At Low Speed |
Product Description
A standard double-acting piston luffing cylinder designed for light-duty aerial work vehicles. Operating at 28MPa, it delivers high thrust and basic anti-eccentric load resistance for boom luffing and ladder lifting operations. Constructed with a 42CrMo piston rod and 27SiMn cold-drawn barrel, it features an integrated bottom trunnion for stable mounting. Ideal for low-height aerial tasks and standard ladder truck applications.
