Outrigger Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Outrigger Cylinder | Pressure Level | 25MPa |
|---|---|---|---|
| Mounting Style | Flange Fixed Type | Piston Rod Material | 40Cr Quenched & Tempered |
| Cylinder Barrel Material | 27SiMn / Q345B | Structural Type | Plunger Type / Single-rod Type |
| Action Mode | Single Acting | Core Structural Features | Return By Self-weight, High Rigidity |
| Applicable Vehicle Type | Large Multi-functional Washing-sweeping Vehicle | Application Scenario | Support And Vehicle Leveling During Operation |
| Core Advantages | Strong Bearing Capacity, Simple Structure, High Overall Stability |
Product Description

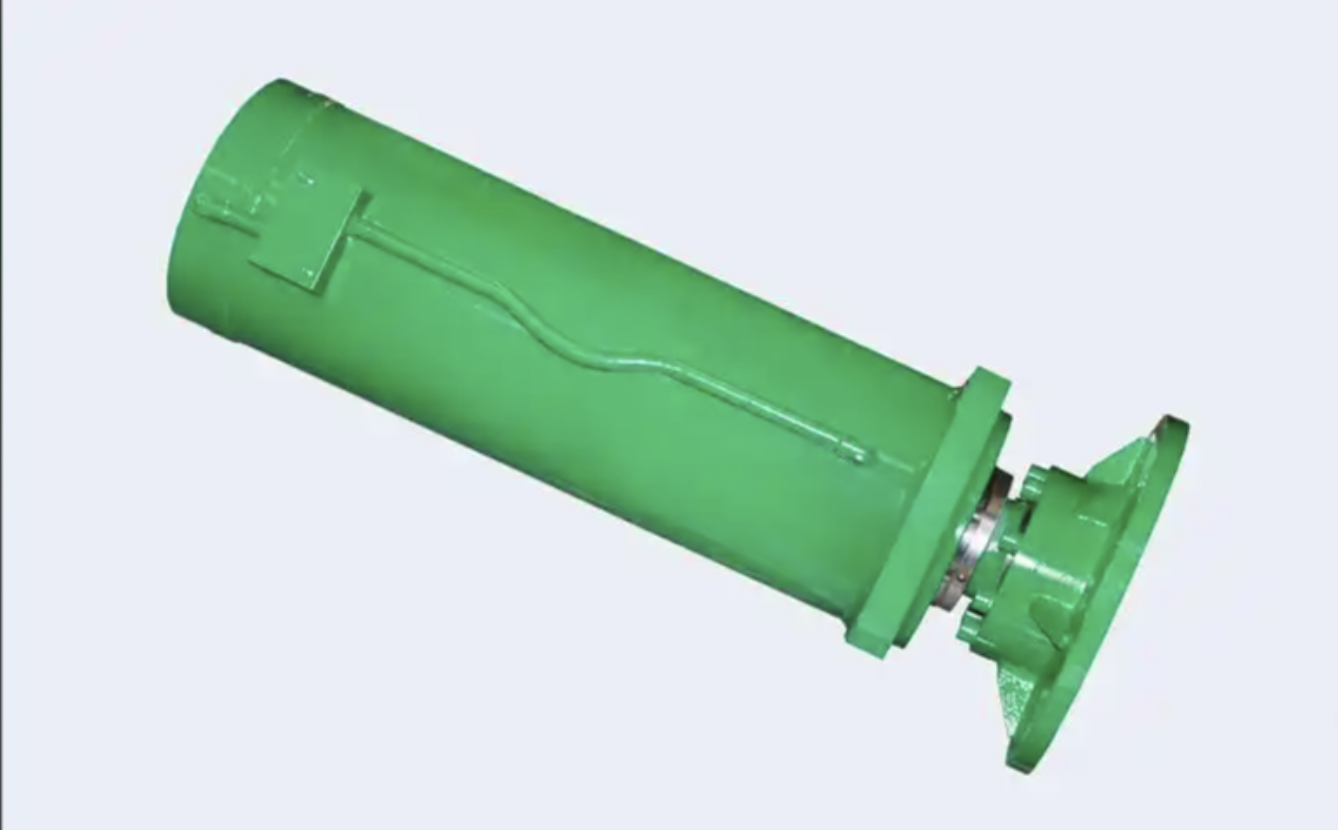

A light-duty single-acting plunger-type cylinder for medium multi-functional washing-sweeping vehicles. Operating at 25MPa, it features flange fixed mounting with high rigidity and self-weight return, providing basic vehicle support and leveling during operation. Constructed with a 40Cr quenched and tempered piston rod and 27SiMn barrel, it prevents rollover on uneven roads, ideal for standard municipal cleaning and sewer maintenance operations.
