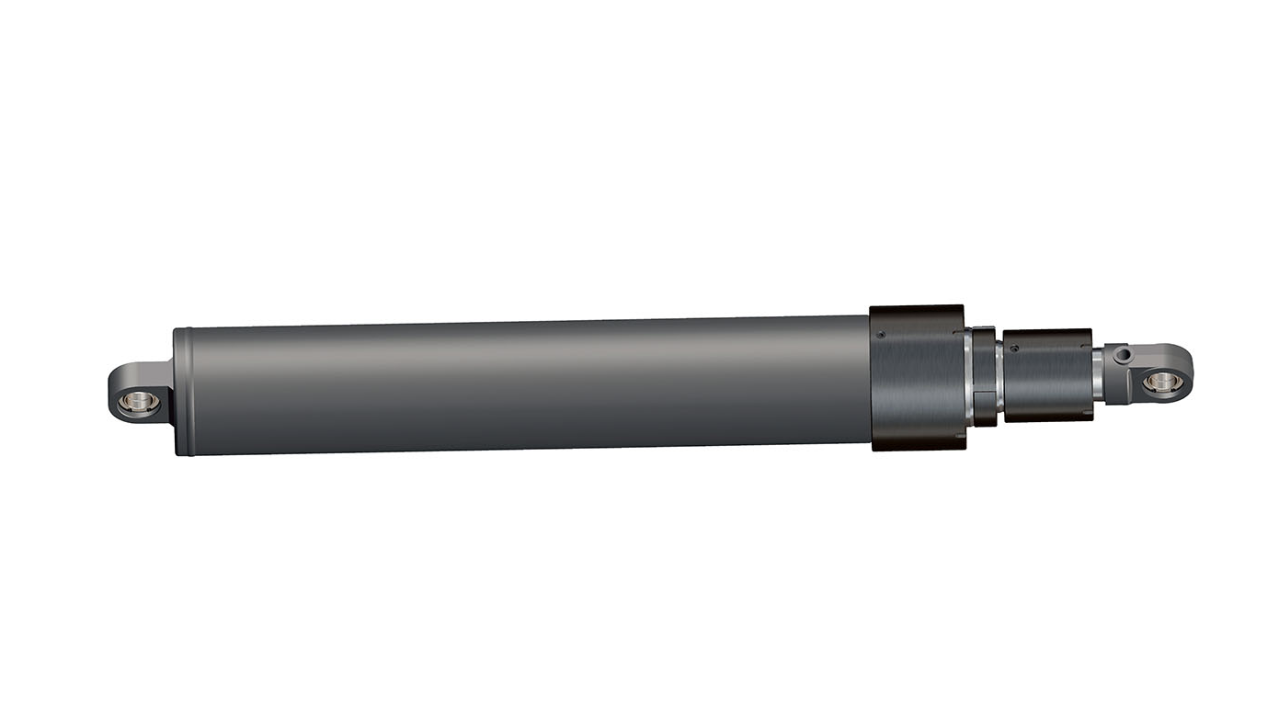

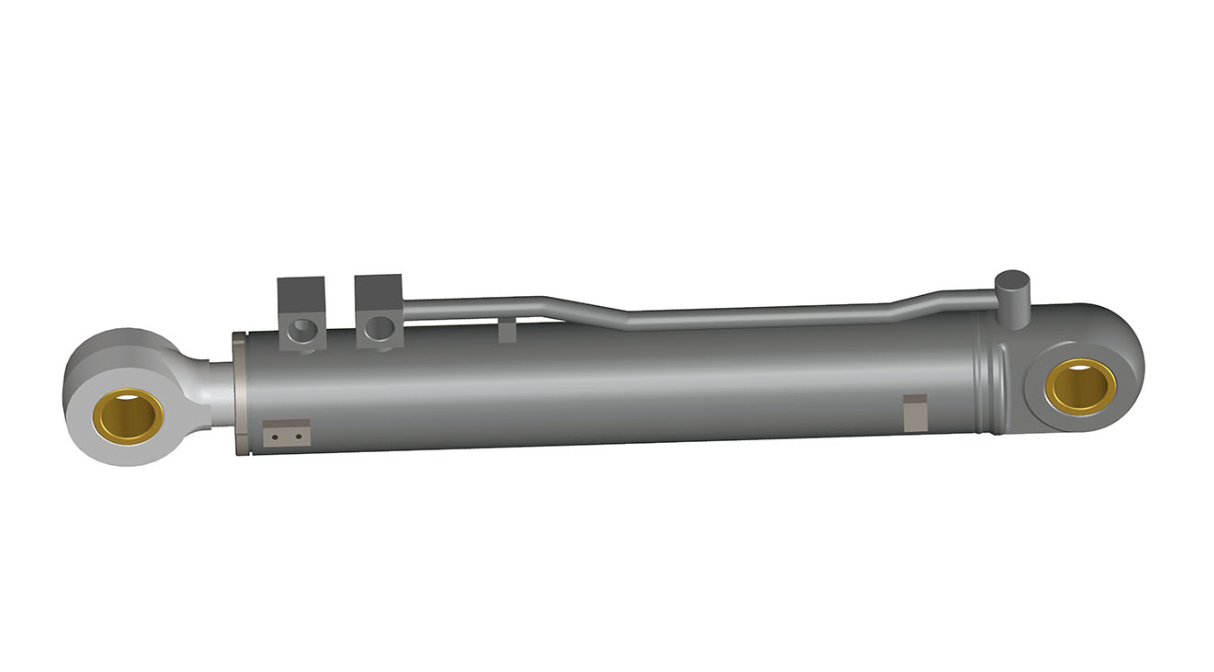

Swing Plate Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Swing Plate Cylinder | Pressure Level | 16-25MPa |
|---|---|---|---|
| Mounting Style | Double Ear Hinge, Ball Joint Hinge | Piston Rod Material | 40Cr Quenched & Tempered, High-frequency Quenched, Hard Chrome Plated |
| Cylinder Barrel Material | 27SiMn Seamless Precision Steel Tube | Structural Type | Single-rod Piston Type |
| Action Mode | Double Acting | Core Structural Features | Built-in Buffer, Dust-resistant Seal, Medium Stroke |
| Applicable Garbage Truck Type | Rear-mounted Compression Truck, Side-mounted Compression Truck | Working Scenario | Drive Swing Plate To Slide Up And Down For Garbage Loading |
| Core Advantages | Smooth Operation, Buffer Noise Reduction, Eccentric Load Resistance, Suitable For High-frequency Reciprocating Motion |
Product Description
A standard double-acting single-rod piston cylinder for rear and side-mounted compression garbage trucks. Operating at 16-20MPa, it features medium stroke with built-in buffering and dust-resistant seals, driving the swing plate to slide up and down for garbage loading. Constructed with a 40Cr quenched, tempered, and hard chrome-plated piston rod and 27SiMn seamless steel barrel, it uses double ear hinge mounting for stable operation. Ideal for light to medium-duty waste collection routes.
