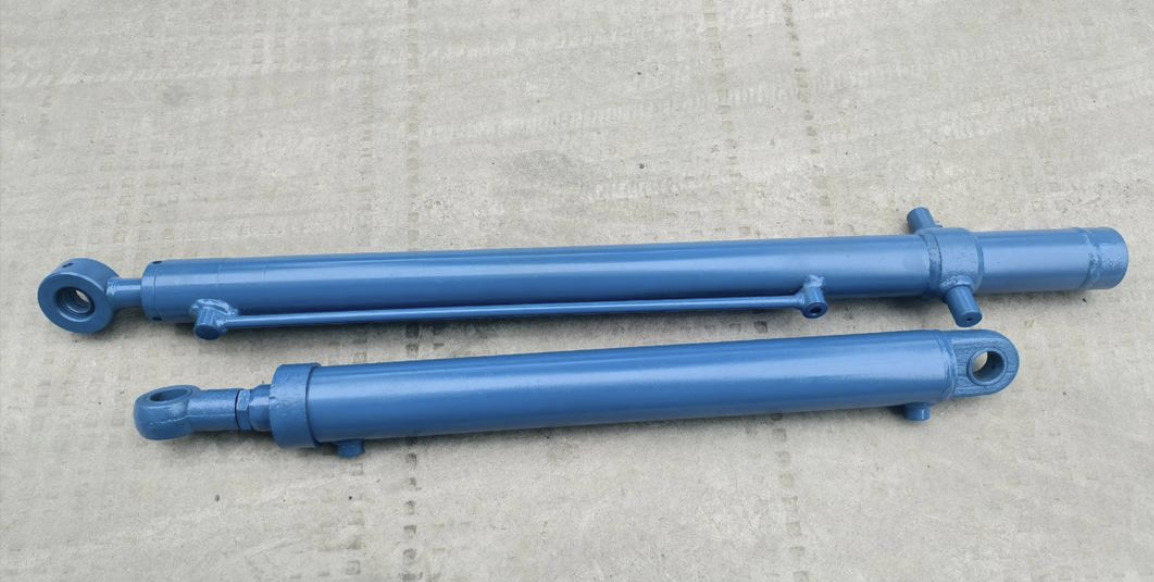

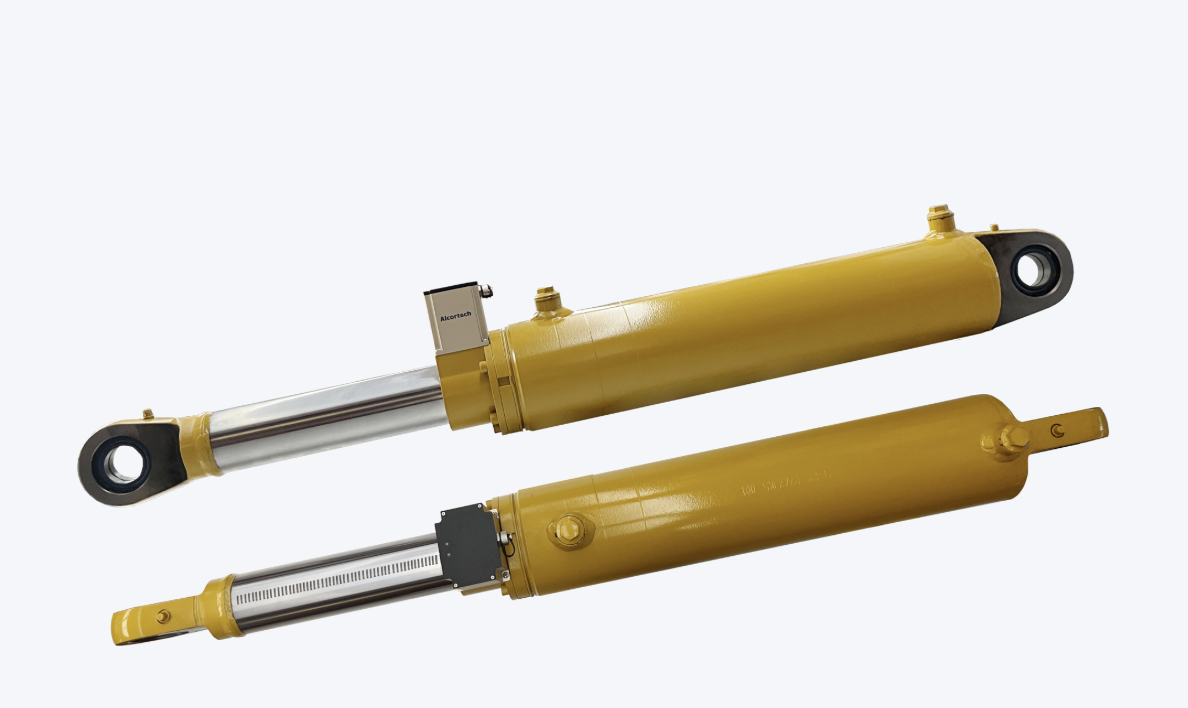

Multi-stage Ejector Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Multi-stage Ejector Cylinder | Pressure Level | 25M-31.5MPa |
|---|---|---|---|
| Mounting Style | Bottom Support, Lug Mounting | Piston Rod Material | 40Cr / 45# Steel Hard Chrome Plated |
| Cylinder Barrel Material | Q345B + 27SiMn Multi-stage Barrel | Structural Type | Multi-stage Telescopic Sleeve Type |
| Action Mode | Multi-stage Double Acting | Core Structural Features | 3~4 Stage Telescopic, Small Installation Distance With Long Stroke |
| Applicable Garbage Truck Type | Large Rear-mounted Truck, Mobile Compression Station | Working Scenario | Push Plate Discharging And Garbage Emptying In Carriage |
| Core Advantages | Small Installation Space Occupation, Ultra-long Stroke, High Thrust And Heavy Load Resistance |
Product Description
A 3-stage telescopic double-acting cylinder designed for standard large rear-mounted compression garbage trucks. Operating at 25MPa, it features a compact installation distance and long stroke, optimized for push plate discharging and garbage emptying in carriages. Constructed with a 45# steel hard chrome-plated piston rod and Q345B+27SiMn multi-stage barrel, it uses bottom support and lug mounting for stable operation. Ideal for medium-volume waste transfer and mobile compression stations.
