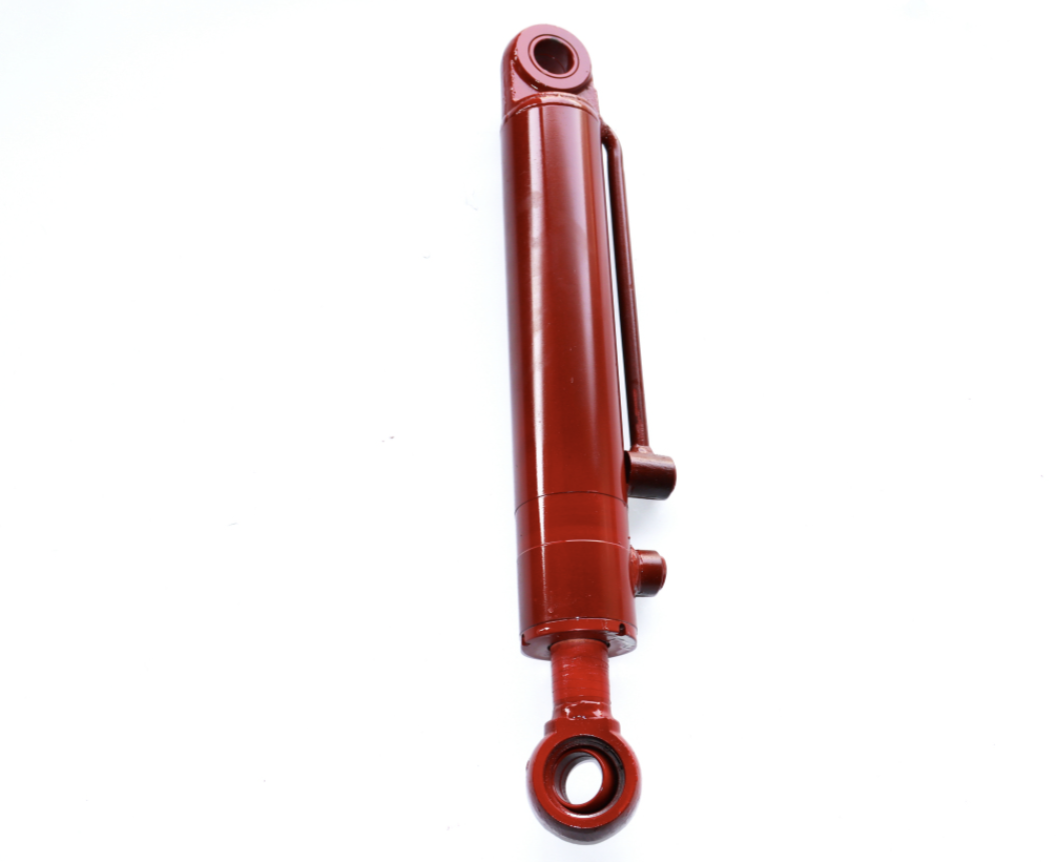

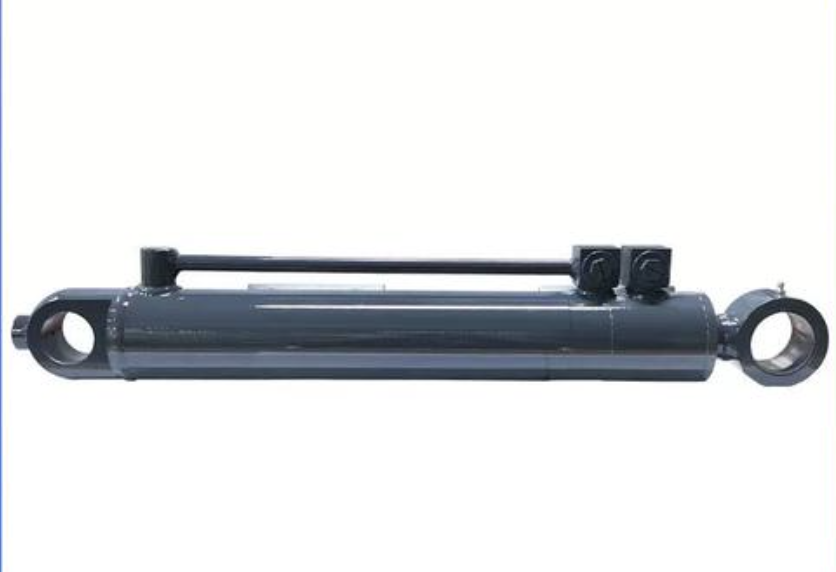

Scraper Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Scraper Cylinder | Pressure Level | 25MPa |
|---|---|---|---|
| Mounting Style | Front Flange / Trunnion Type | Piston Rod Material | 40Cr High-frequency Quenched & Hard Chrome Plated |
| Cylinder Barrel Material | 27SiMn | Structural Type | Single-rod Piston Type |
| Action Mode | Double Acting | Core Structural Features | Small Bore, Short Stroke, Fast Response |
| Applicable Garbage Truck Type | Full Series Rear-mounted Compression Garbage Trucks | Working Scenario | Scraper Rotary Scraping And Extrusion Loading |
| Core Advantages | Compact Structure, Concentrated Output Force, Sensitive Response, Impact Resistance For Frequent Operation |
Product Description
A light-duty double-acting single-rod piston cylinder designed for standard rear-mounted compression garbage trucks. Operating at 25MPa, it features a small bore, short stroke, and fast response, optimized for scraper rotary scraping and extrusion loading of household waste. Constructed with a 40Cr high-frequency quenched and hard chrome-plated piston rod and 27SiMn barrel, it includes front flange mounting for compact installation. Ideal for small to medium urban sanitation vehicles handling low-to-medium volume waste.
