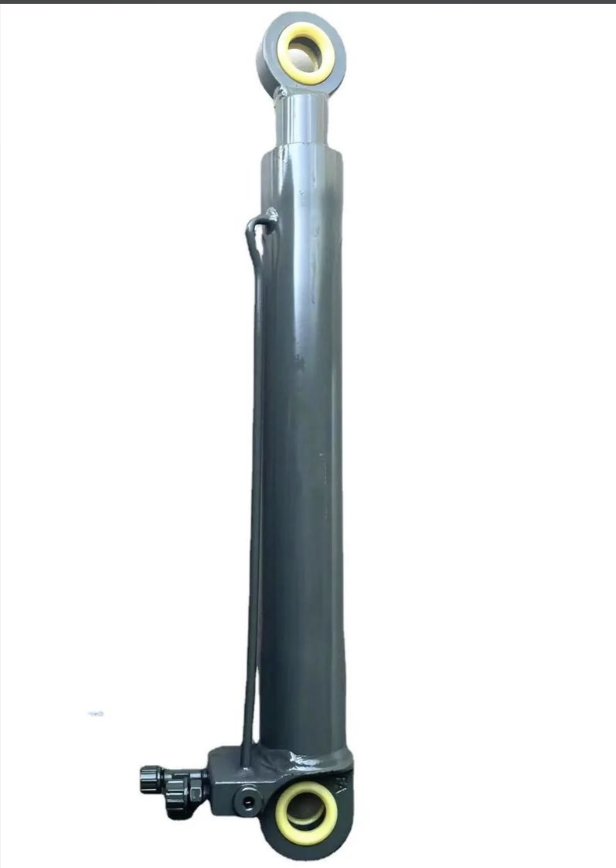

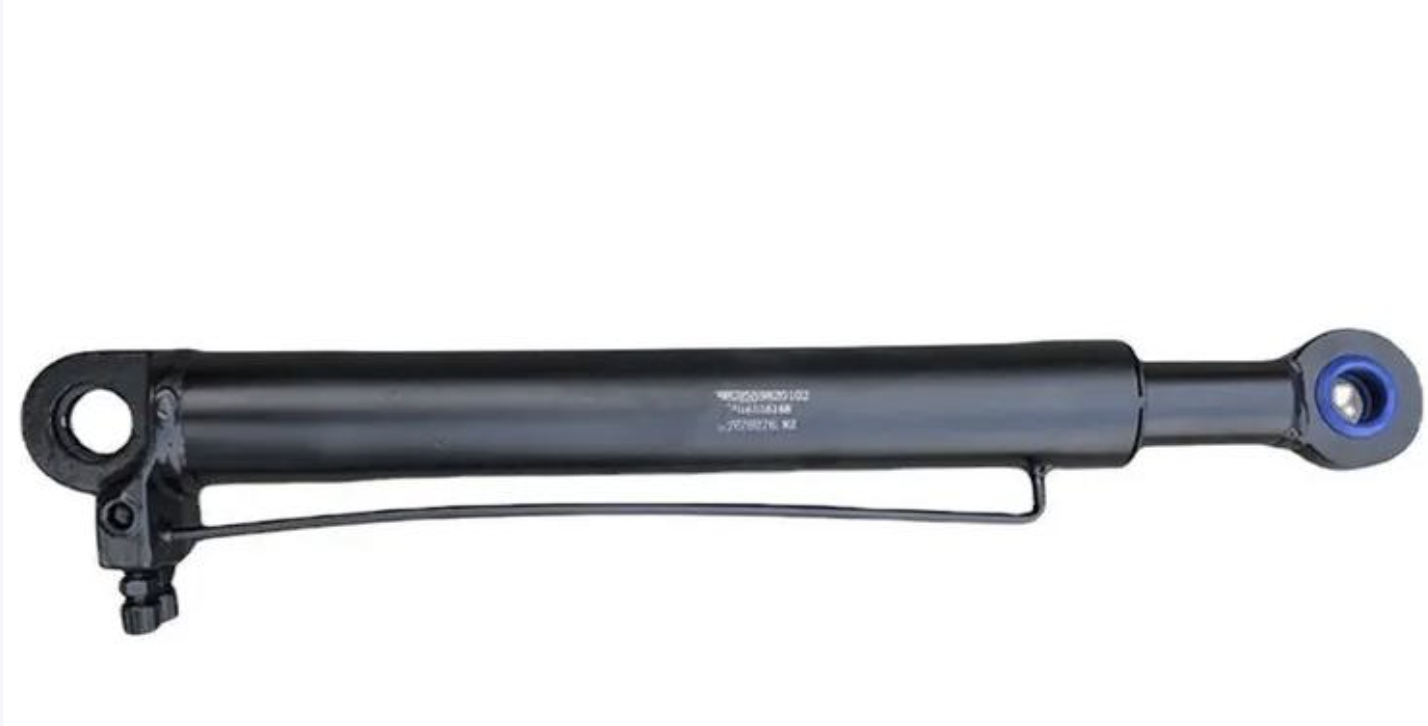

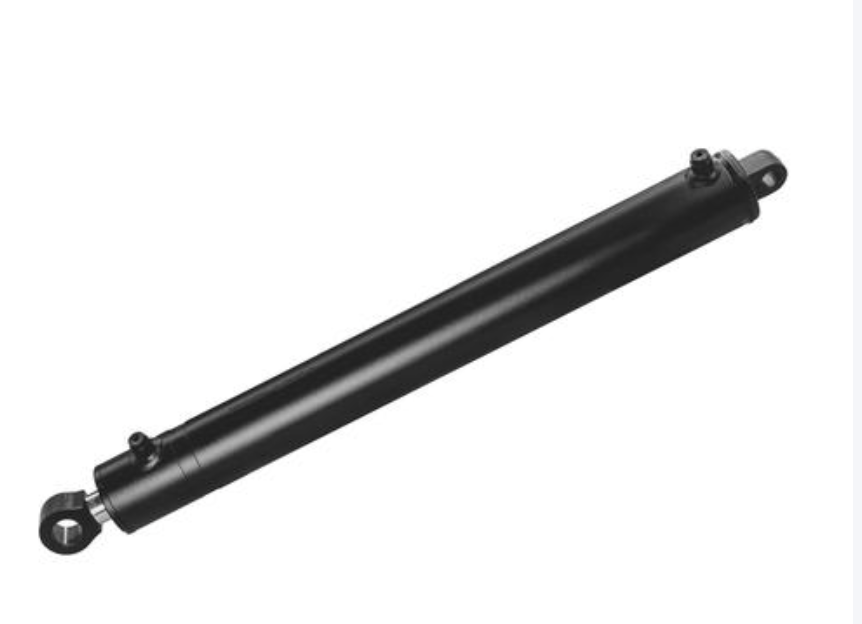

Main Hook Arm Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Main Hook Arm Cylinder | Pressure Level | 25- 31.5MPa |
|---|---|---|---|
| Mounting Style | Double Lug Hinge, Bottom Hinge | Piston Rod Material | 40Cr Quenched & Tempered + Hard Chrome Plated |
| Cylinder Barrel Material | Q345B、27SiMn | Structural Type | Multi-stage Telescopic Sleeve Type |
| Action Mode | Multi-stage Double Acting | Structural Features | Multi-stage Telescopic, Small Installation Distance, Long Stroke, Built-in Buffer |
| Applicable Model | Light/medium/heavy Hook Arm Garbage Truck | Application Scenario | Hook Up, Pull And Transfer Garbage Container |
| Core Advantages | Small Space Occupation, Long Stroke, Strong Heavy-load Tension, Impact Resistance, Stable Operation |
Product Description
The Main Hook Arm Cylinder is a light-duty multi-stage telescopic double-acting cylinder designed for light hook arm garbage trucks. Featuring a 3-stage telescopic sleeve structure and double lug hinge mounting, it provides compact installation distance and long stroke for light-load container hooking and pulling. Rated at 25MPa, it includes basic built-in buffering and dustproof treatment, with a 40Cr quenched, tempered, and hard chrome-plated piston rod and Q345B barrel. It delivers reliable performance for small container transfer in urban residential waste collection.
