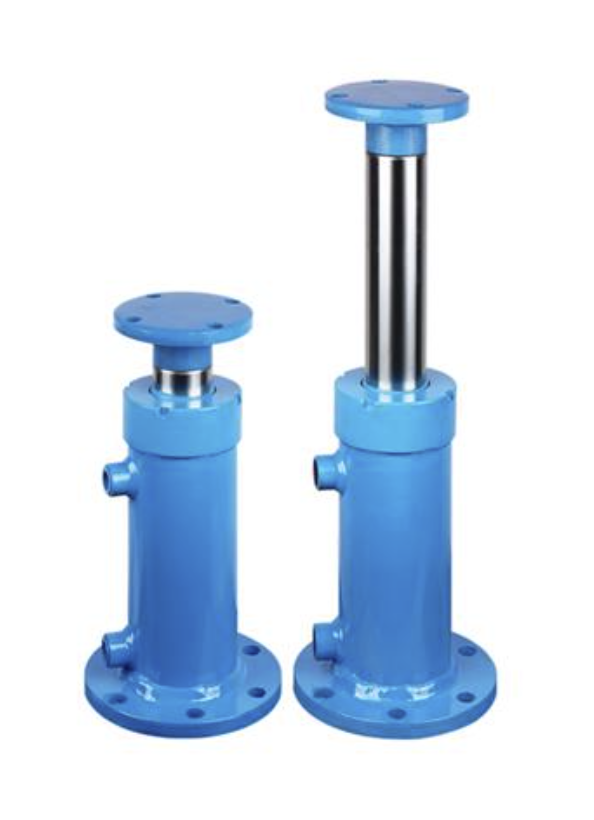

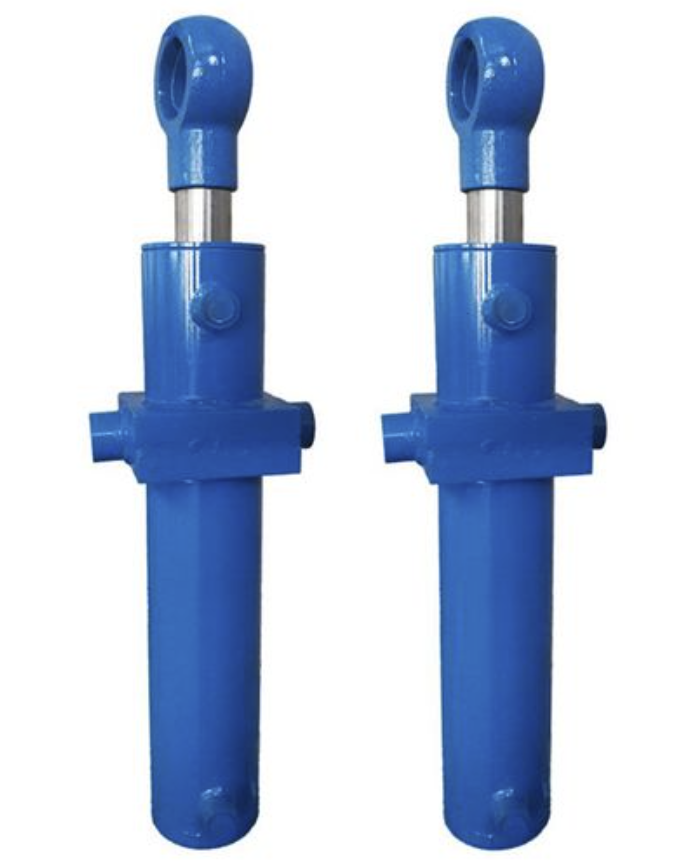

Working Outrigger Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Working Outrigger Cylinder | Pressure Level | 25MPa |
|---|---|---|---|
| Mounting Style | Flange Fixed Type | Piston Rod Material | 40Cr Quenched & Tempered |
| Cylinder Barrel Material | 27SiMn / Q345B | Structural Type | Plunger / Single-rod Piston Type |
| Action Mode | Single Acting | Structural Features | Return By Self-weight, High Bearing Rigidity |
| Applicable Model | Large High-pressure Cleaning Truck, Sewer Dredging Truck | Application Scenario | Vehicle Support, Leveling And Anti-rollover During Operation |
| Core Advantages | Strong Bearing Capacity, Simple Structure, High Stability, Maintenance-free |
Product Description
A light-duty single-acting cylinder for standard high-pressure cleaning and sewer dredging trucks. Operating at 25MPa, it features plunger-type structure and flange fixed mounting, providing basic vehicle support and leveling during operation. Constructed with a 40Cr quenched and tempered piston rod and 27SiMn barrel, it returns by self-weight with high bearing rigidity to prevent rollover. Ideal for light-duty municipal cleaning and sewer maintenance operations.
