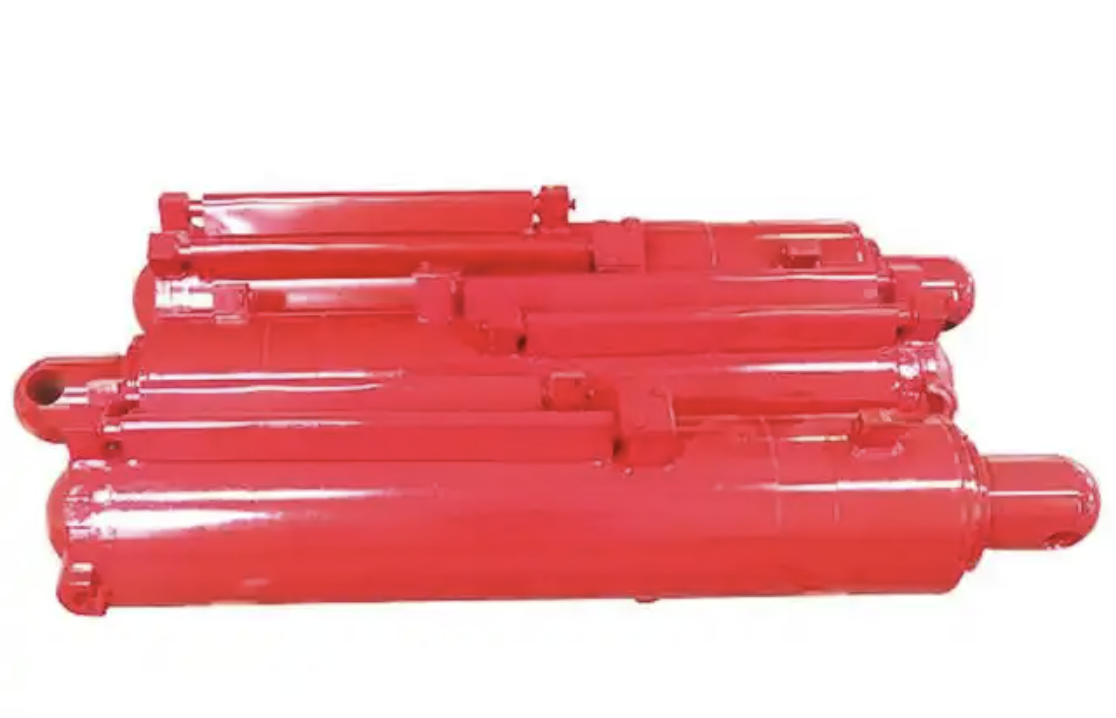

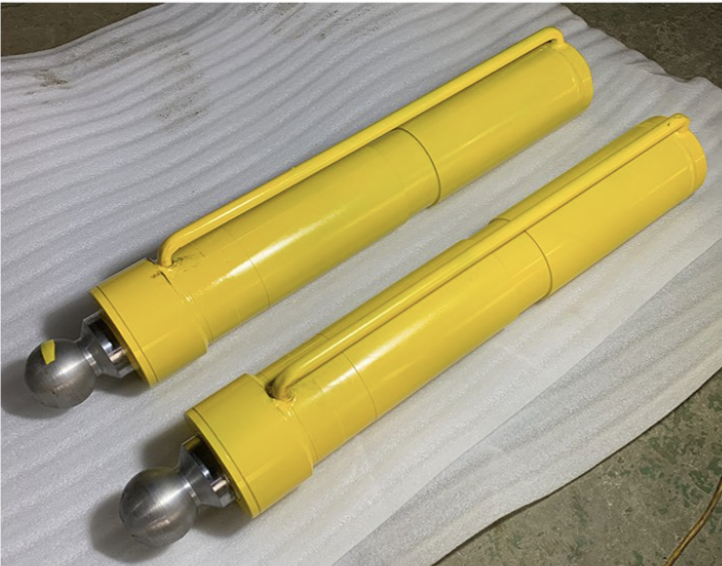

Horizontal Outrigger Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Horizontal Outrigger Cylinder | Structural Type | Double-acting Horizontal Installation, Short Stroke |
|---|---|---|---|
| Working Condition Remarks | Outrigger Deployment In Narrow Sites, Urban Construction Operation | Core Structural Features | Compact Structure, Small Lateral Force, Fast Telescoping Speed |
| Adapted Excavator Type | Truck Crane, Truck-mounted Crane | Main Application Scenarios | Outrigger Lateral Unfolding & Retracting, Widening Support Span |
| Core Advantages | Fast Unfolding, Small Occupation, Low Failure Rate, Easy Maintenance |
Product Description
Horizontal Outrigger Cylinder 1 is the primary horizontal extension cylinder for crane outriggers, operating at a medium-high
pressure range of 16-22MPa. It is constructed with a Q345B seamless steel pipe barrel and a chrome-plated 40Cr piston rod, offering
a perfect balance of strength, durability, and cost-effectiveness. This cylinder is responsible for extending the outriggers horizontally, creating a wide, stable base for the crane to prevent tipping during lifting operations. Designed for smooth and reliable linear movement, it features precision guide rings and low-friction seals to ensure consistent performance even in dusty and harsh construction environments. The cylinder’s compact design allows for easy installation and maintenance, while its robust construction withstands the shocks and vibrations common in mobile crane operations. It is compatible with various mobile crane models and plays a critical role in enhancing the crane’s stability and lifting safety. Custom specifications are available to match different outrigger spans and mounting configurations.
