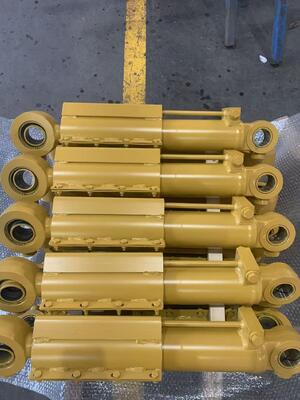

Lifting Auxiliary Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Lifting Auxiliary Cylinder | Pressure Level | 16–23MPa |
|---|---|---|---|
| Cylinder Barrel Material | 27SiMn | Piston Rod Material | 42CrMo |
| Structural Type | Double-acting Parallel Type | Working Condition Remarks | Large Mine Material, Heavy Stone Loading And Unloading |
| Core Characteristics | Synchronous Stress Sharing, Load Distribution, Improved Lifting Force | Applicable Loader Model | 5-ton And Above Large Loader |
| Application Scenarios | Heavy-load Lifting, Full-bucket Hoisting, Mine Heavy Duty | Core Advantages | Even Load Distribution, Extended Main Cylinder Service Life, High Stability |
Product Description
Lifting Auxiliary Cylinder is a supplementary hydraulic component designed to assist the main boom cylinders in lifting heavy
loads, providing additional support and stability during high-capacity loading operations. Operating within a working pressure range
of 16–23MPa, this medium-high pressure cylinder is constructed with a 27SiMn steel barrel, offering a balance of strength, durability, and cost-effectiveness. The piston rod is made of 42CrMo steel, providing sufficient wear resistance and structural integrity for auxiliary lifting tasks. As the first-stage auxiliary cylinder, it works in tandem with the main boom cylinders to distribute lifting forces, reducing stress on the primary system and enhancing the loader’s overall lifting capacity. It features a simple and robust design with reliable sealing technology, ensuring consistent performance in everyday construction environments. The low-friction guide rings and seals ensure smooth movement, even in dusty and muddy conditions. This cylinder is compatible with small, medium, and large wheel loaders, and is engineered to deliver reliable, cost-effective auxiliary lifting support for light to medium-duty material handling tasks.
