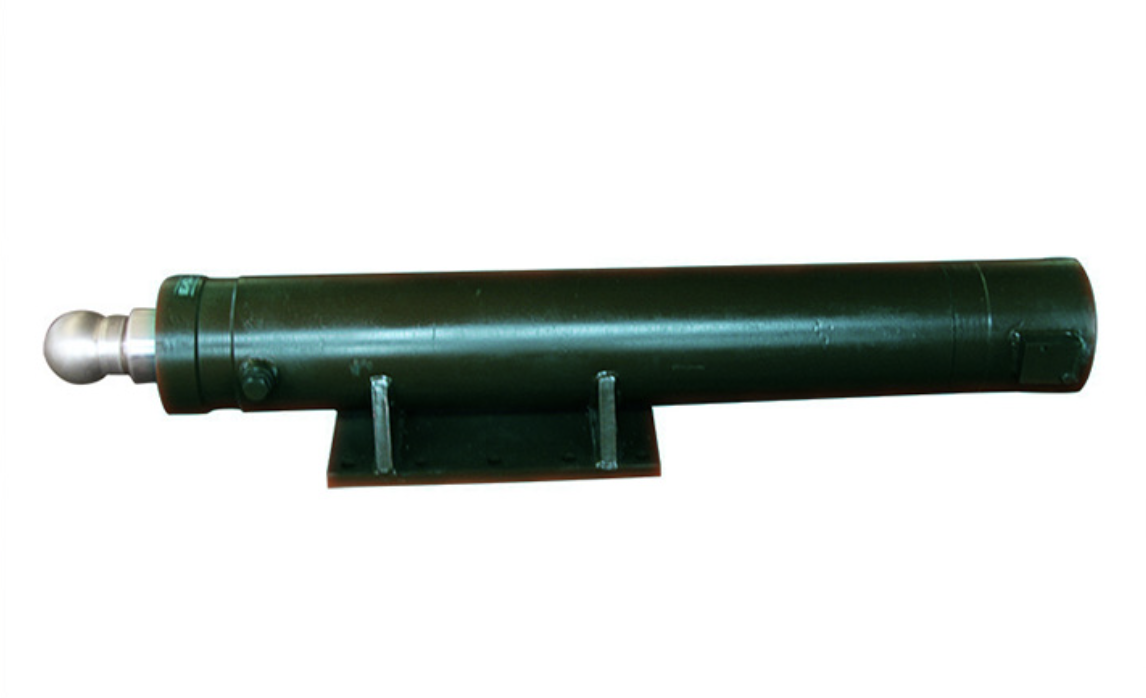

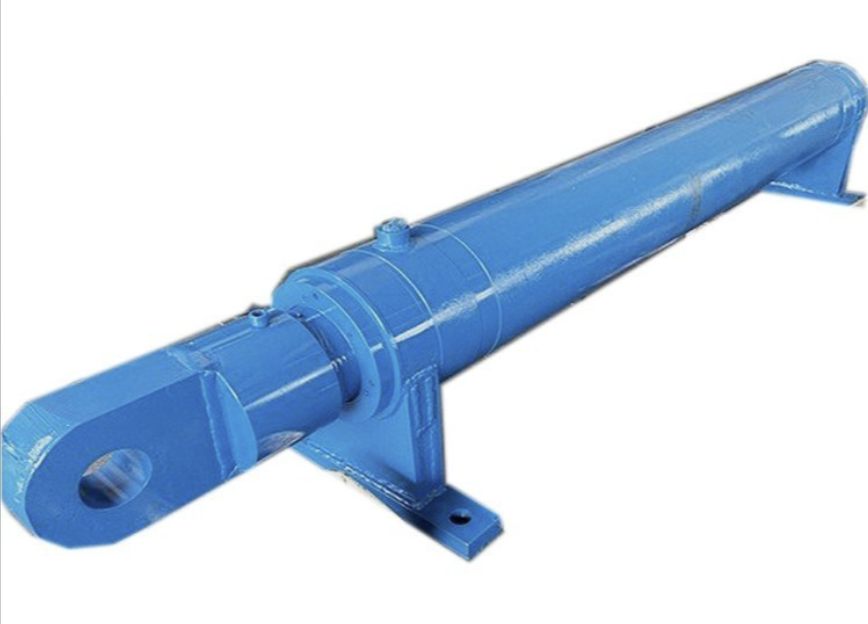

Vertical Outrigger Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Vertical Outrigger Cylinder | Structural Type | Single/Double Acting, Vertical Telescopic |
|---|---|---|---|
| Working Condition Remarks | Uneven Construction Site, Soft Foundation, Heavy-load Outrigger Force Bearing | Core Structural Features | Large Bearing Area, Strong Self-locking, Anti-sinking, High Stability |
| Adapted Excavator Type | Truck Crane, Truck-mounted Crane, Rough Terrain Crane | Main Application Scenarios | Whole Vehicle Support, Ground Leveling, Operation Stability Support |
| Core Advantages | Stable Support, Anti-collapse, Automatic Leveling, Safe And Reliable |
Product Description
Vertical Outrigger Cylinder is the primary vertical support cylinder for crane outriggers, operating at a medium-high pressure
range of 18-25MPa. It is constructed with a high-strength barrel made of Q345B or 27SiMn steel, paired with a 40Cr or 42CrMo
piston rod, offering exceptional load-bearing capacity and durability. This cylinder is responsible for extending the outrigger pads vertically to the ground, providing a solid, stable foundation for the crane during lifting operations. Designed to withstand heavy compressive loads and eccentric forces, it features precision-machined components and advanced sealing systems to eliminate leakage and maintain pressure holding safety. The cylinder’s self-locking design prevents accidental retraction under load, ensuring continuous support and stability. It is engineered with a large bearing surface to distribute loads evenly, reducing wear on both the cylinder and the outrigger structure. It meets strict safety standards and is compatible with various mobile crane models, making it a critical component for safe and stable lifting operations.
