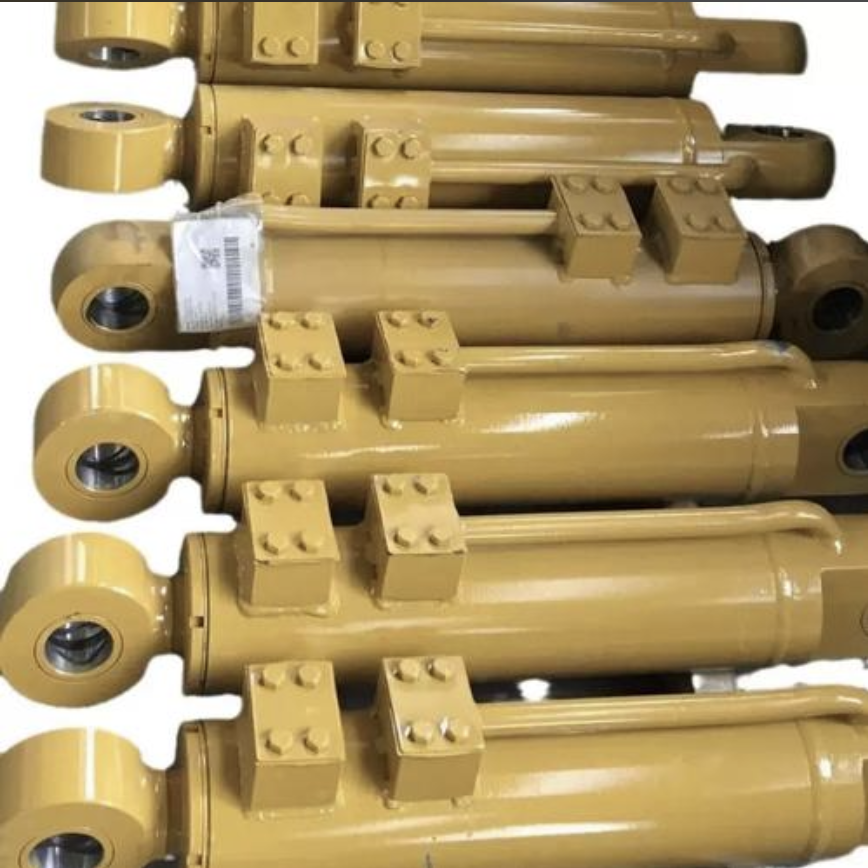

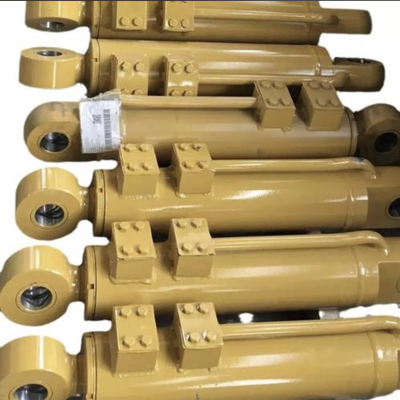

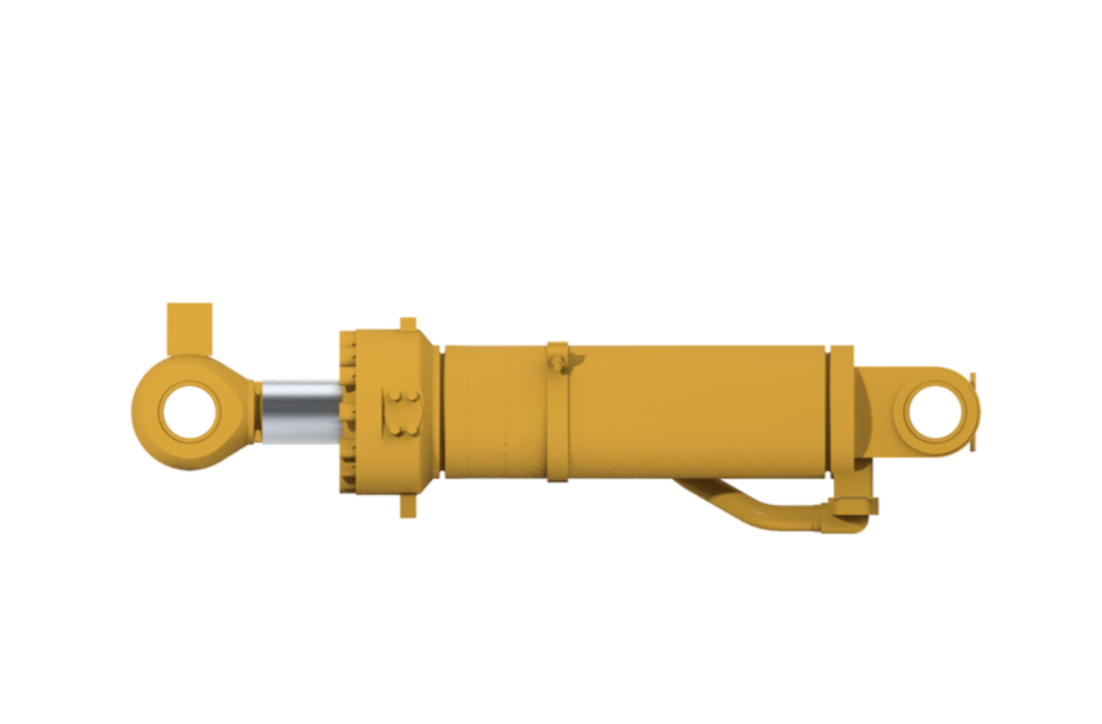

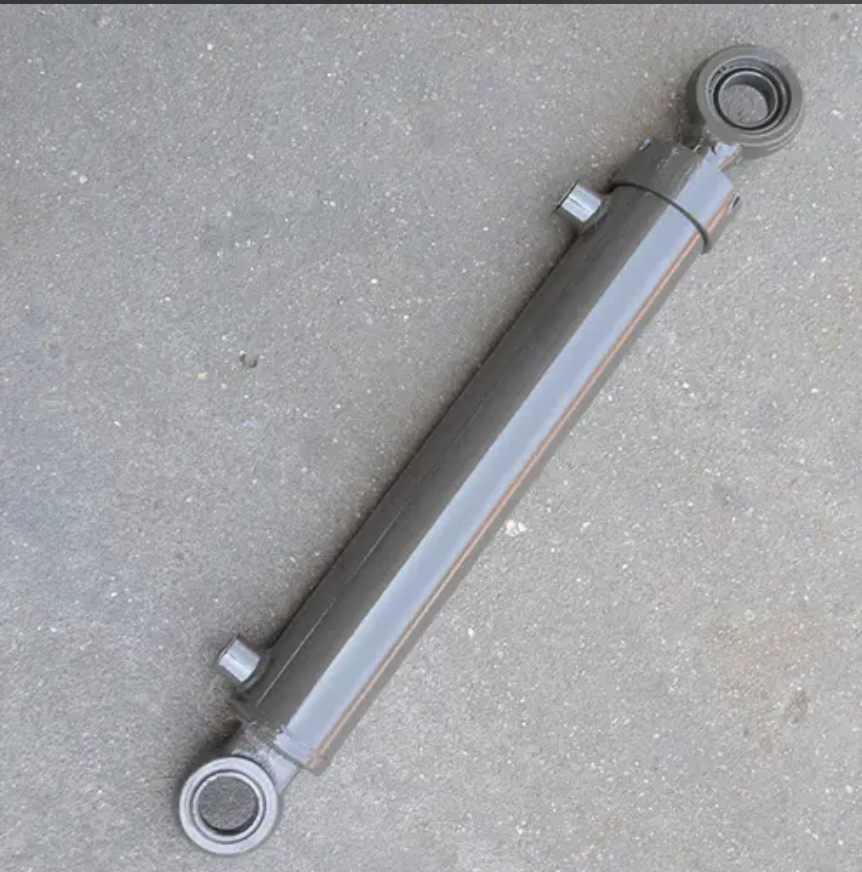

Boom Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Boom Cylinder | Pressure Level | 18–25MPa |
|---|---|---|---|
| Cylinder Barrel Material | 27SiMn, Q345B | Piston Rod Material | 40Cr, 42CrMo Quenched, Tempered And Chrome-plated |
| Structural Type | Double-acting Single Rod, Trunnion Type | Working Condition Remarks | Sand Yard, Mine, Continuous Heavy-duty Construction Operation |
| Core Characteristics | Thick Cylinder Wall, Good Bending Resistance, Large Load Capacity, Long Stroke | Applicable Loader Model | Small / Medium / Large Wheel Loader |
| Application Scenarios | Boom Lifting, Bucket Hoisting, Heavy-load Loading And Unloading | Core Advantages | Strong Bearing Capacity, Impact Resistance, Stable Lifting, Fatigue Resistance |
Product Description
Boom Cylinder is the primary hydraulic component that powers the lifting and lowering of the loader’s boom, serving as the core
force behind the machine’s shovel-lifting and material-handling capabilities. Operating within a working pressure range of 18–25MPa,
this medium-high pressure heavy-duty cylinder is constructed with a robust barrel made of 27SiMn or Q345B steel, renowned for its exceptional strength, impact resistance, and ability to withstand the heavy cyclic loads common in loader operations. The piston rod is crafted from 40Cr or 42CrMo steel, subjected to quenching, tempering, and hard chrome plating to ensure superior wear resistance, corrosion resistance, and long service life under continuous reciprocating motion. As the first-stage boom cylinder, it directly bears the full weight of the boom, bucket, and the entire load being lifted, making its structural integrity and reliability critical to the loader’s performance. It features a precision multi-stage sealing system designed to eliminate internal and external leakage, even under the high pressures and shock loads encountered during heavy loading or rock handling. The advanced buffer mechanism reduces impact forces at the end of each stroke, protecting both the cylinder and the boom structure from damage. This cylinder is compatible with small, medium, and large wheel loaders, including articulated models, and is engineered to deliver smooth, powerful boom movement in a wide range of working conditions, from light material handling to heavy mining applications.
