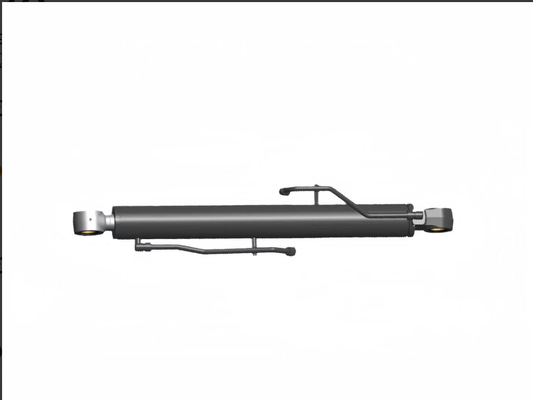

Steering Cylinder
| Place of Origin | Changzhou, Jiangsu, China |
|---|---|
| Brand Name | CSYG |
| Minimum Order Quantity | based on the actual needs of the customer |
| Price | based on the actual needs of the customer |
| Packaging Details | based on the actual needs of the customer |
| Delivery Time | production cycle is 1-2 months excluding transportation time |
Product Details
| Cylinder Type | Steering Cylinder | Pressure Level | 14–20MPa |
|---|---|---|---|
| Cylinder Barrel Material | Q345B, 27SiMn | Piston Rod Material | 40Cr Chrome-plated |
| Structural Type | Double-acting Hinged, Horizontally Mounted | Working Condition Remarks | Factory Transfer, Narrow-site Operation, Frequent Steering |
| Factory Transfer, Narrow-site Operation, Frequent Steering | Compact Structure, Stable Steering Damping, Balanced Stress | Applicable Loader Model | Medium / Large Articulated Loader |
| Application Scenarios | Whole Machine Steering, Site Shifting, Spot U-turn | Core Advantages | Light Steering Without Stalling, Precise Control, Durable |
Product Description
Steering Cylinder is the primary hydraulic component responsible for controlling the articulated steering mechanism of the loader,
enabling smooth and precise turning operations. Operating within a working pressure range of 14–20MPa, this medium-pressure
cylinder is constructed with a durable barrel made of Q345B or 27SiMn steel, offering a balance of strength, cost-effectiveness, and reliability for continuous steering use. The piston rod is made of 40Cr steel with conventional chrome plating, providing sufficient wear resistance and durability for the reciprocating motion of steering operations. As the first-stage steering cylinder, it directly controls the articulation of the loader’s frame, making its smooth and reliable operation critical to the machine’s maneuverability and safety. It features a robust sealing system designed to prevent internal and external leakage, even under the pressures and shocks encountered during turning or rough terrain operation. The simple and low-friction design ensures consistent movement, even in dusty and muddy conditions. This cylinder is compatible with small, medium, and large articulated loaders, and is engineered to deliver reliable, precise steering control for everyday construction and material handling tasks.
